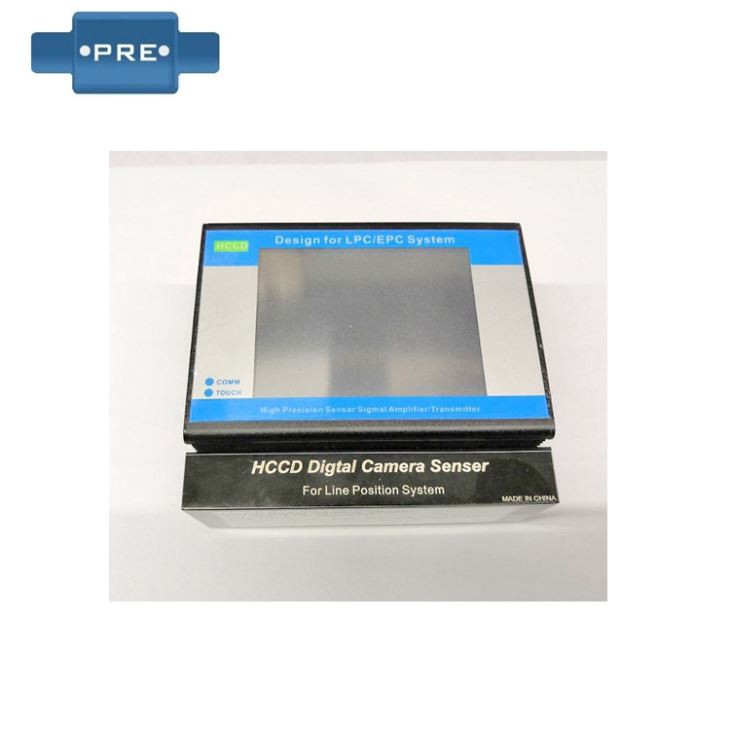

Web Edge Linearity Sensor

Applicable to all kinds of high-precision edge detection/detection line correction systems, such as slitting machine, compound machine, pc flexo printing machine, and various winding systems, etc. It can also be applied to the displacement, speed and acceleration of objects to be detected. , external shape, size and other occasions, the scope of application and its wide range.

The ccd probe is undoubtedly the best solution for applications where tracking or contrasting colors are detected. Identify color edges with very low contrast, such as white yellow paper, holographic images, and high-reflection low-contrast image edges.

How the ccd probe works: The ccd probe reads the thin lines or edges of the coil through a miniature lens. Different types of ccd probes can be used depending on the requirements for coil deflection detection. Because the ccd probe has a built-in color filter system, the ccd probe can easily read even thin lines with extremely low contrast, which effectively reduces the new recognition time of the new coil due to the replacement of the coil, which reduces the production cost and improves the production cost. Productivity.

Features

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase
