Web Guide Sensor

Sensor Edge
photoelectric sensor is a visible light-based anti-reflection sensor, suitable for the tracking of the coil,or the application on the transparent,breathable materials.
Read More

Photoelectric Edge Guide Sensor For Fabric Rolling Machine
Photoelectric Edge Guide Sensor for Fabric Rolling Machine is widely used in fabric rolling machines, inspection and rolling machines as well as for winding and packing devices in paper making, plastic industries,which has the function of edge alignment during rolling so as...
Read More

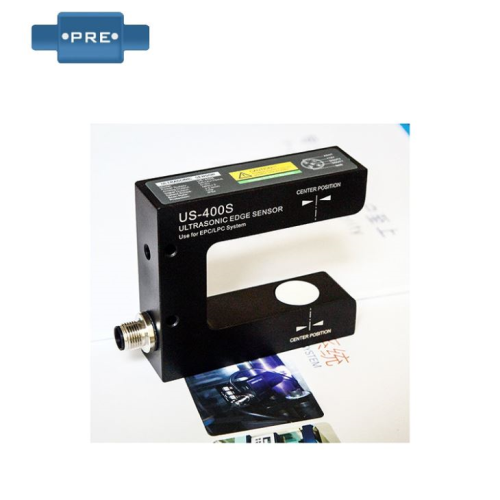

Ultrasonic Edge Sensor
The principle of linear propagation of excessive frequency ultrasonic wave is implemented inside the ultrasonic rectification sensor to stumble on the brink function of coil. as compared with optoelectronic sensor, it isn't tormented by cloth transparency, surface dirt,...
Read More

Edge Tracking
Ultrasonic Guide Device (Ultrasonic Guide Sensor) Features: A guide device system is basically a displacement sensor to detect the strip position and compare it with the given amount. If there is an offset, the actuator will correct the offset until the given amount is...
Read More

Web Guide System Ultrasonic
Ultrasonic guiding device (ultrasonic guiding sensor) is a winding and unwinding guiding device produced by Dongguan Taiwan Machine. It is composed of rectification controller, rectification sensor, electric drive and rectification guiding mechanism. These four components...
Read More

Edge Sense
Ultrasonic Web Edge Sensor: US-400S/US-500 Supply voltage: 10-30VDC Operating ambient temperature: 0-60 Detection method: through the light blocking type Detection distance: 50mm Source Chromatography: Ultrasound Reaction speed: 0.1ms Load current: 100mA Output method: analog...
Read More

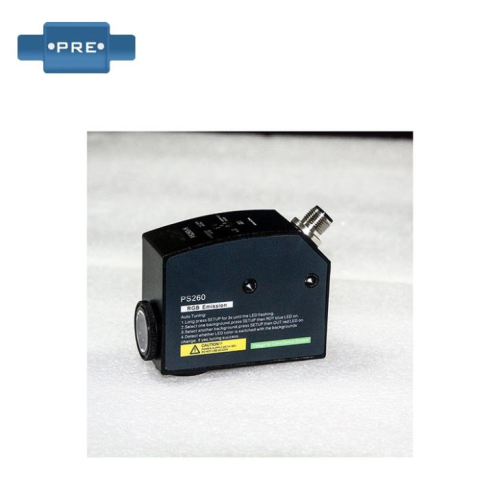

Reflection-type Sensor
PS-260 Reflective Color sensor, contrast sensor,Photoelectric sensor This sensor ,contrast sensor, photoelectric sensor offers the best solution for all the applications where cost reduction is requested, without compromising the excellent detection performances. The...
Read More

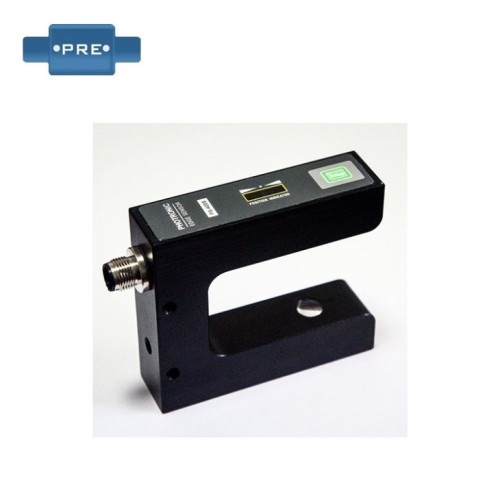

Edge Sensor
Ultrasonic Web Edge Sensor: US-400S/US-500 Features: 1. Support mode to measure / switch output, with correction controller, 2, suitable for opaque, transparent film line application 3, no need for workers to adjust the calibration 4, 200K ultrasonic beam 5, 1ms reaction time...
Read More

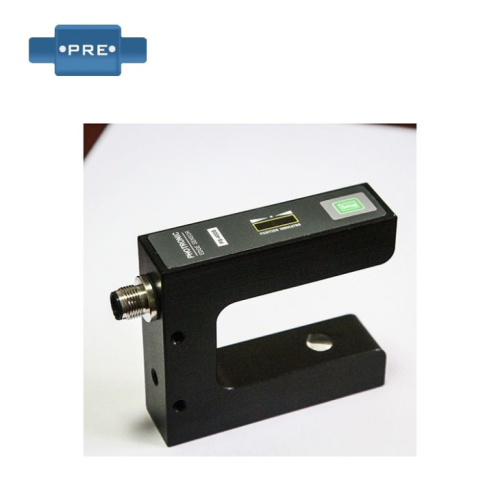

Edge Guide Sensor
The principle of linear propagation of high frequency ultrasonic wave is applied in the ultrasonic rectification sensor to detect the edge position of coil. Compared with optoelectronic sensor, it is not affected by material transparency, surface dust, wet water mist and so...
Read More

Photoelectric Edge Guide Sensor
​PS-500 photoelectric sensor is a visible light-based anti-reflection sensor, suitable for the tracking of the coil,or the application on the transparent,breathable materials.
Read More

Reflection-Type Color Web Guide Sensor
Switching output type, can be used with EPC-A10/EPC-D12 web guide controller;
Intelligently selected red, green and blue light source;
Smart calibration without potentiometer adjustment.
Read More

Electric Eye Camera CCD Sensor
CCD electric eye PS-1000 uses the most advanced CCD vision sensor technology to directly analyze the pattern in the coil material, extract the lines and edges in the image and automatically track it, and easily complete the chasing and chasing applications.
Read More
