Overall Structural Analysis Of Safety Chuck

The main features of the safety chuck are as follows:

1. Using the valve flap micro-motion method to determine the criteria, strictly in line with international standards.

2. The detection is that the valve flap does not jump and does not disturb the production conditions.

3. The threaded collet ensures that the mechanical bracket can be securely and securely attached to the safety valve. The variable diameter chuck can accommodate a variety of different sizes of valve stems.

4. The safety chuck is a safe and reliable limit mechanism that limits the opening height and does not disturb the production conditions.

5. When there is a leak after returning to the seat, the valve can be forcibly closed by a strong shut-off system. High-pressure and ultra-high pressure safety valves can be designed with our company's specially designed lightweight hydraulic high-pressure system without affecting the constant pressure value.

6. Hydraulic external force system, the force is stable, suitable for large external force occasions, the external force curve is gentle and stable.
       The safety collet provides the customer's economical and easy-to-install design, providing fast, safe, reliable and easy coupling and disconnection for frequent movements such as coupling and disengagement. Moreover, the dimensions of the safety chuck drive section can be designed and manufactured according to the customer's mechanical specifications and characteristics. The overall structure is excellent in rigidity, can withstand high torque, and is safe and free from loosening during rotation. A replaceable VT-type reel holder is available for greater life.

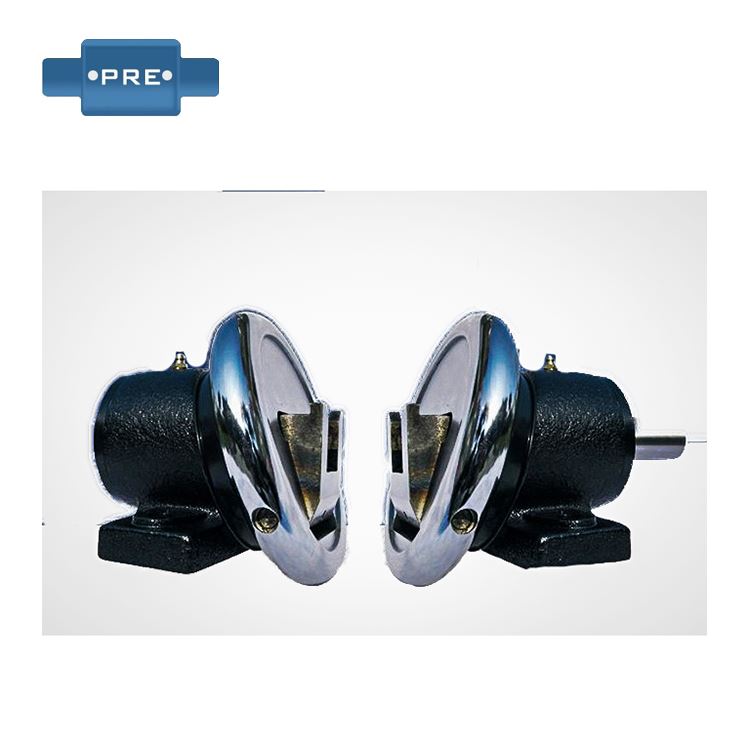

       The safety chuck is a quick-connecting device that is applied to the receiving and discharging reels to save time for the operator to load and unload. There is no need to move the structure of the machine every time when changing materials. The safety chuck provides the operator with the ability to quickly change materials when receiving and discharging. Reduce the time of the upper and lower materials, making the operator's work more efficient to achieve cost savings.

       1. The overall structure of the safety chuck is reasonable, the rigidity is good, and it can withstand large torque and eliminate the looseness during rotation.

       2, accurate machining accuracy to ensure accurate positioning, the reel nozzle uses a special heat treatment process;

       3. Provides replaceable VT-type reel mounts, which greatly extend the service life of the safety collet

       4, the use of special alloy steel materials with superior performance, superior durability and durability;

       5. The bayonet is nickel-plated, and the bayonet is hardened and has high hardness and durability. It can ensure good performance even under heavy load and high speed applications.

       6. The reasonable tolerance of the bayonet parts ensures smooth and continuous torque transmission, which greatly enhances the safety of the machine.

       7. Simple installation, suitable for continuous sliding or high frequency use, buffer starting, with soft start characteristics.
