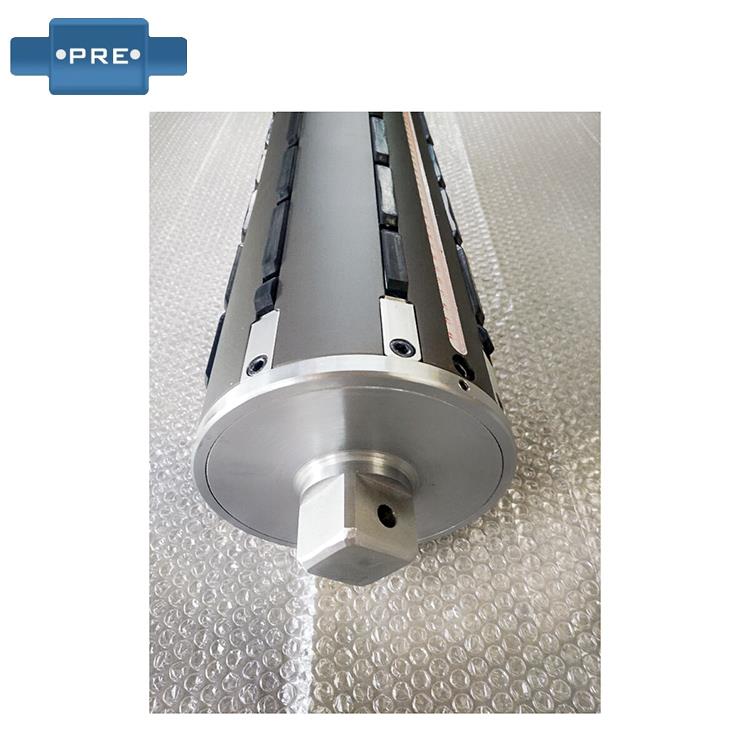

What Are The Technical Characteristics Of The Inflation Shaft?

The use of the air-expansion shaft is versatile: the air-expansion shaft can be applied to any machine that has a winding and unwinding. Suitable for printing equipment: drying machine, flexo printing machine, gravure machine, trademark printing machine and so on. Suitable for other mechanical equipment: coating machine, leather machine, setting machine, embossing machine, slitting machine, die cutting machine, rewinding machine, rewinding machine, paper tube machine, laminating machine, laminating machine, The use of blown film machine, foaming machine, laminating machine, embossing machine, paper machine, non-woven machine, cloth inspection machine, bronzing machine, battery equipment and other related machinery.

The integral metal frame excavates a box-type window at the fixed end of the cantilever mandrel operating side to ensure the structural rigidity of the printing platform. The bearing seat is mounted on the inside of the movable steel block, and the steel block is made of high-precision ball wire. The rod is driven, and the moving position of the screw is on the center line of the plate mandrel. Linear guides are respectively installed at the upper and lower ends of the box window to fix the movable steel block, thereby ensuring the stability of the printing platform in high-speed operation. In this design, the fixing of the mandrel is completely automatic, and the movement of the entire screw and the locking of the shaft end eliminate the human factor. The moving steel block is fixed to the frame by two upper and lower linear guide rails, and since the screw rod moves on the center line of the plate roller mandrel, the thrust of the center impression cylinder against the plate roller and the driving force along the direction of the ball screw are both effective. At the center of the plate mandrel, only a small partial pressure is formed, and since the force load acts only on the center of the plate mandrel, there is no torque on the support frame.

The air shaft is evenly stressed: the air shaft is unloaded without removing the entire shaft. After the gas is directly deflated, the material can be removed, because its width is not large, so the natural operation is more convenient. This is also the inflation shaft selected by many machines that are light in weight and small in width. The inflation shaft has a balanced force pressure that allows it to distribute the pressure evenly. The inflation and deflation process of the inflation shaft generally takes about 2 seconds, and the step of placing the coil tube is very simple and practical.

The metal frame of the gas-rising shaft excavates a box-type window at the fixed end of the operating side of the cantilever mandrel to ensure the structural rigidity of the printing platform. The bearing seat is mounted on the inside of the movable steel block, and the steel block is made of high precision. The ball screw is driven, and the moving position of the screw is on the center line of the plate mandrel. Linear guides are respectively installed at the upper and lower ends of the box window to fix the movable steel block, thereby ensuring the stability of the printing platform in high-speed operation.
