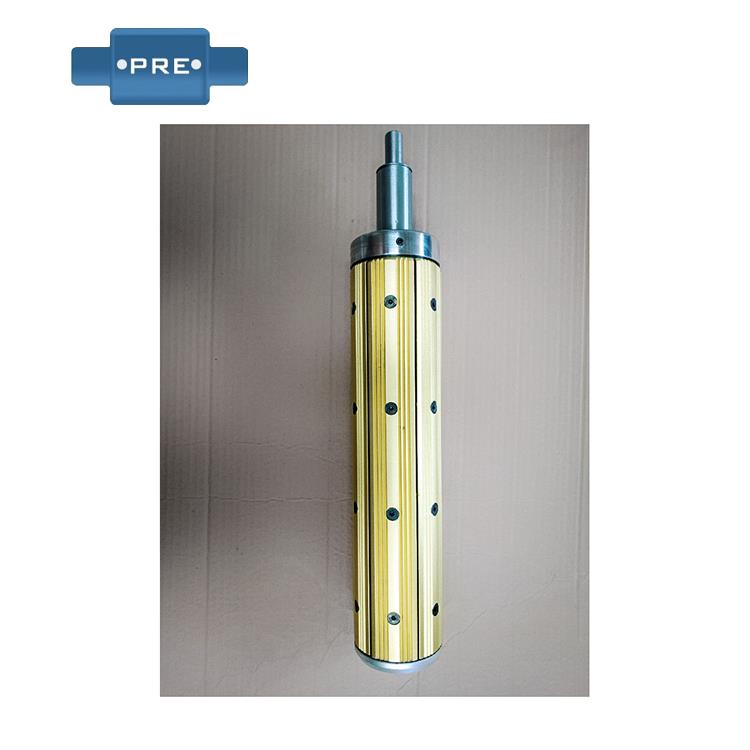

What Is The Inflation Shaft?

It is a special type of winding and unwinding, that is, the axis that can be raised after the high pressure is inflated, and the shaft whose part of the surface is quickly retracted after deflation is called the inflation shaft.

The world's first inflation axis was invented by the US-based Tidland MC01 (400/830/1898). It is a special type of winding and unwinding, that is, the axis that can be raised after the high pressure is inflated, and the shaft whose part of the surface is quickly retracted after deflation is called the inflation shaft. Its name is diversified, also known as pneumatic shaft, expansion shaft, inflation shaft, air expansion roller, inflation shaft, pressure shaft, air expansion roller and so on.

Although the inflation shaft is called more, the working principle is the same. The air expansion shaft and the air expansion sleeve are extremely convenient and quick to use. It only needs to be self-contained, and the air pressure is controlled within the range of 6-8kg/cm2. For components (such as round paper tubes), as long as the air gun is inflated against the air nozzle on the inflatable shaft, against external components (such as a circular paper tube), you need to loosen the paper when unloading Press out the sliding outer part of the nozzle (such as a round paper tube) to remove it.
Characteristics

1: The inflating operation time is short, the separation and placement of the inflation shaft and the paper tube can be completed in 3 seconds to complete the inflation and deflation, and it is not necessary to separate any parts on the shaft end side to be tightly engaged with the paper tube.

2: The paper tube is simply placed: in the action of inflation and deflation, the paper tube can be moved and fixed at any position on the shaft surface.

3: The bearing weight is large: the diameter of the shaft can be determined according to the actual needs of the customer, and the high-hardness steel is used to make the bearing weight increase.

4: High economic efficiency: The shaft is designed for special functions, and can be applied to all kinds of paper tubes of thick, thin, wide and narrow.

5: Simple maintenance and long use time: The inflation shaft is a single part, and each part in the structure has fixed specifications, which can be used interchangeably to make it easy to maintain.

use

The air-expansion shaft has a wide range of applications. For machines with winding, unwinding and slitting, the air-expansion shaft can be applied, even in the light metal industry. Such as: the inflation shaft is mainly suitable for printing equipment: drying machine, flexo printing machine, gravure machine, trademark printing machine, etc.; other machinery: coating machine, leather machine, setting machine, embossing machine, slitting Machine, die cutting machine, rewinding machine, paper tube machine, bag making machine, laminating machine, laminating machine, film blowing machine, foaming machine, laminating machine, embossing machine, paper machine, non-woven machine, The use of fabric inspection machines, bronzing machines, battery equipment, etc.
