Photoelectric Web Guiding Four Major Of Maintain

Maintenance Points for Guide System
The manufacturer of photoelectric guiding device introduces four major maintenance points of the web system (1) neat: the tools, workpieces and accessories are placed neatly; the safety protection device of the correcting system is complete; the line pipe is complete.

(2) Cleaning: clean inside and outside; all sliding surfaces and screws, gears, racks, etc. are free of oil and no bumps; no oil leakage, no water leakage, no air leakage, no leakage; cleaning of the garbage.
The manufacturer of photoelectric web device introduces four major maintenance points of the guiding system (1) neat: the tools, workpieces and accessories are placed neatly; the safety protection device of the guiding system is complete; the line pipe is complete. (2) Cleaning: clean inside and outside; all sliding surfaces and screws, gears, racks, etc. are free of oil and no bumps; no oil leakage, no water leakage, no air leakage, no leakage; cleaning of the garbage.
(3) Lubrication: Oil is changed on time, oil quality meets the requirements; oil pot, oil gun, oil cup, linoleum, oil line are clean and complete, the oil mark is bright, and the oil path is smooth. (4) Safety: Implement the system of fixed and fixed shifts; familiarize with the maintenance structure of the edge web system and observe the operating procedures, use the web system to maintain, carefully maintain the tools, and prevent accidents.

What are the modes of the guide system? The guide system is extremely wide, and it is indispensable in the packaging, printing, labeling, building materials, pulp, household paper, plastic, garment, cable, metal processing, non-woven fabric, corrugated paper processing, etc. A typical one of the typical correction systems includes a correction controller, a correction sensor, a correction frame and a driver.

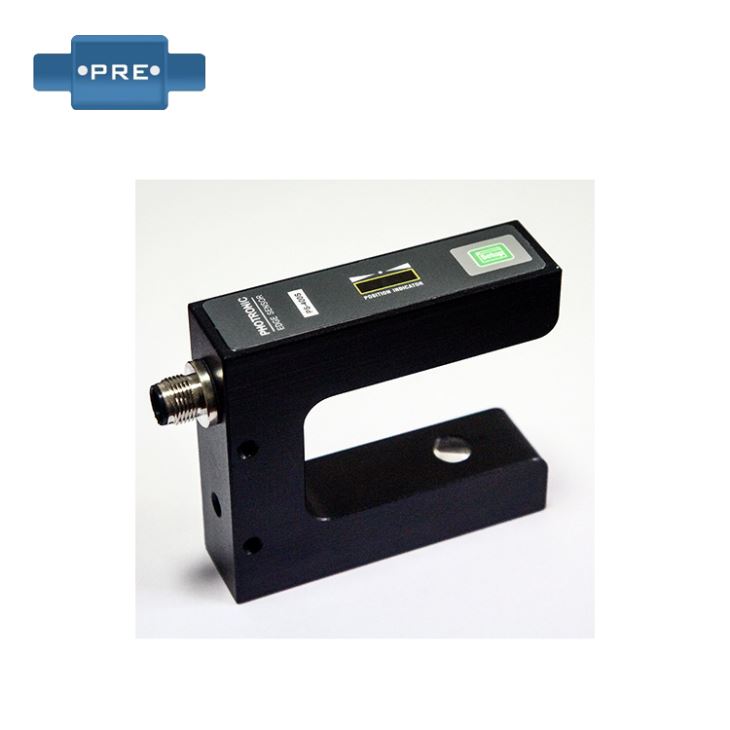

Guiding principle: During the winding or running process, the photoelectric sensor/ultrasonic sensor device is placed at the reference position of the material marking line or the edge to pick up the signal generated by the material offset reference position, and the signal amount is sent to the guide Device.

The photoelectric guiding manufacturer indicates that the control box performs arithmetic processing on the semaphore, compares it with the reference setting signal value, and amplifies and outputs the generated deviation amount to control the motor operation of the driver. The linear motion of the drive drives the mechanical mechanism (guide frame), and the deviation of the material operation is corrected by the operation of the mechanical mechanism to ensure the normal operation of the material.
