What Practical Matters Need To Pay Attention To The Photoelectric Guiding Machine?

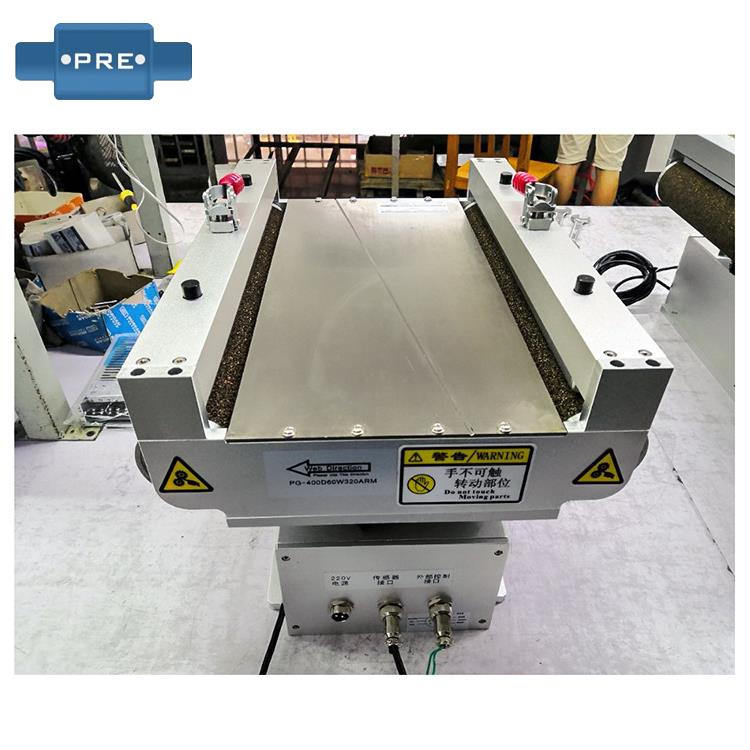

1. Photoelectric edge chasing machine, also known as: [edge machine / guiding machine / edge machine] It mainly uses the microcomputer correction controller and photoelectric photoelectric guide control system composed of photoelectric eye, stepping motor, screw rod, travel switch and other components. Correct the curl in motion.

1. Adjust the position of the photoelectric guiding machine and the machine to be adjusted according to the requirements (as far as possible, the correcting machine should be parallel with the machine to be matched and the distance between the front and rear is about 50~80CM).

2. Install the reel required to chase the edge on the rectifying machine discharge shaft and connect it to the bag making machine--> adjust to the appropriate position--> lock the fixed hex screw.


3. Check and adjust the distance between the upper and lower sides of the photoelectric eye on the guiding machine (the distance between the photoelectric eye and the material plane is 1~1.5CM; the general single chasing edge, adjust the position of the electric eye according to the direction of chasing).


4. Connect the photoelectric guiding machine power plug to the 220V socket--->Align the guiding direction of the controller with the position of the electric eye---> temporarily adjust the controller control mode to manual control--->open the controller Main power switch---> Observe the actual working condition of the chasing machine---> If everything works normally, then turn on the matching machine---> Adjust the manual control of the controller to automatic control--->The chasing machine starts to cooperate Automation works fine.


5. During the actual use of the photoelectric guiding machine, the mechanical operator should always test the product accuracy in order to detect the chasing situation of the chasing machine and make minor adjustments at any time.
