Understand The Preparation Of The Photoelectric Guide Before Operation

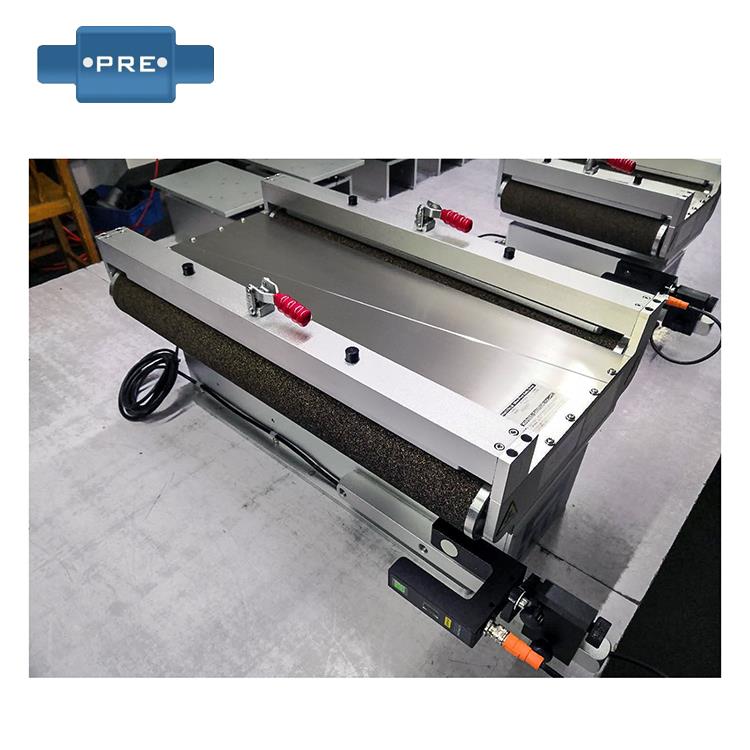

 Photoelectric web guide is mainly applied to the lateral deviation control of the reel material: it can correct the deviation of the web such as web film, non-woven fabric and woven fabric. The photoelectric correcting instrument can correct the deviation of various coil materials such as web film, metal foil, non-woven fabric and woven fabric. The controller can select the heel and follow-up according to the different materials, and freely select single/double electric eye detection to meet the needs of various materials.

        When the photoelectric guide is working, the position of the single side is detected by the photoelectric detection switch to pick up the position deviation signal, and then the position deviation signal is logically operated to generate a control signal, and the DC24V voltage signal is output to drive the external actuator to guide the material running time. The serpentine deviation controls the linear motion of the material.
        Let's take a look at some of the photoelectric guiding before they run:
1. Wiring: Connect the power supply, motor, limit switch and photoelectric head according to the requirements of the wiring diagram.
2. The polarity of the motor should be correctly determined.
3. The limit switch controls the determination of the stopping direction of the motor.
4, the choice of materials on the side or on the line.
5. Positioning and adjustment of the photoelectric head.
        Photoelectric guide has been widely used in the industry, and its quality is safe and reliable. The appearance of this photoelectric guide has brought great contributions to the development of the web guide industry.
