How To Operate The Photoelectric Guide System Correctly

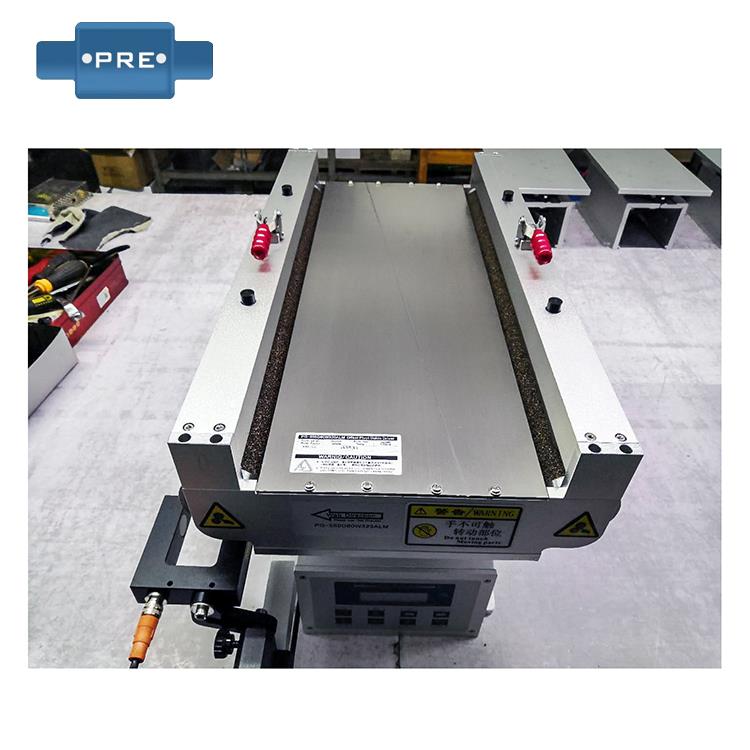

The photoelectric guide instrument is widely used in the lateral adjustment of the strip in the flexible packaging production line. The product uses the photoelectric detecting head as the sensor, and the web guide system function is completed by the synchronous motor through the single chip processing. It has the characteristics of high reliability, strong anti-interference ability and excellent performance and price ratio.
 When the photoelectric detection head, motor, limit switch and power supply are all correct, you can operate as follows:
1. Turn on the photoelectric guide power switch, then the direction indicator will start to flash regularly for three seconds, and the buzzer will sound three times; then the controller will work in the state before the previous shutdown.

2. If the strip is adjusted for the first time, switch to the "Manual" state. Press the “→” and “←” keys to make the motor move, aim the light spot of the photoelectric head to the edge of the tracked edge or line; and adjust the sensitivity of the photoelectric head so that its indicator light is bright and dark near the color mark. Variety.

3. Then you can run in the "automatic" mode, at this point pay attention to the direction of movement of the material. If it is only moving in one direction (normally it should be alternately moving in the horizontal direction), press the "Polarity" button to change it in time.
4. In addition, in the "automatic" mode, the motor can be operated at the appropriate frequency by the operation of the "+" and "-" keys. For example, in the single photoelectric mode, the sensitivity should be increased when the vehicle speed is fast.
5. If an abnormality-limit action occurs, the buzzer will alarm and the motor will stop running immediately.
