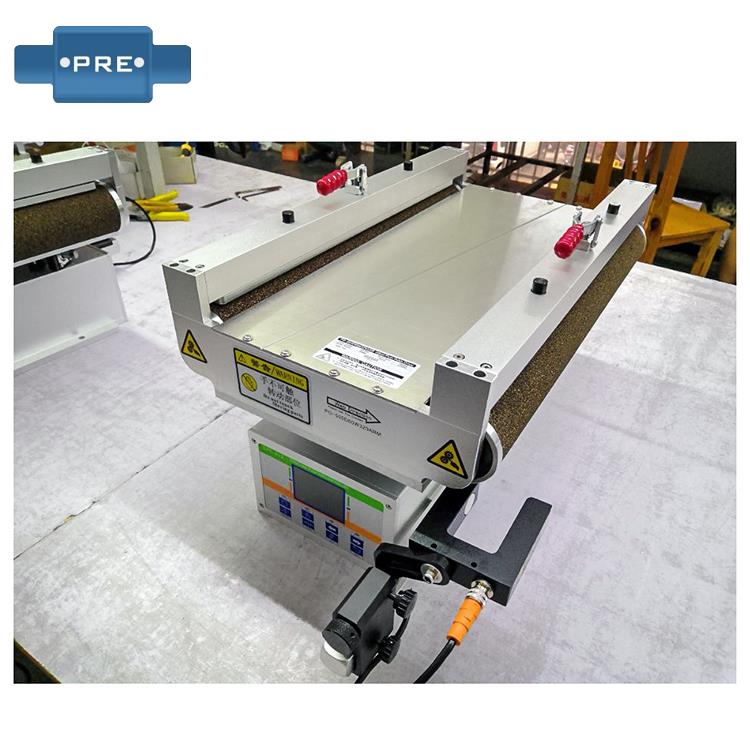

Photoelectric Web Guide System Integrated Machine Actuator Installation Method

The photoelectric web guide system integrated machine is a mechanical device for guiding the side error of the coil in the forward movement. The displacement type guiding is to realize the side correction of the coil by changing the span of the coil at the inlet and the outlet. The correcting device provides the corrective control you need to help your production line run efficiently and efficiently.

With a suitable combination of sensors, drivers, and other guiding components, the web guide device can provide a high-precision, balanced, closed-loop, servo system with high dynamic response. The following are three installation methods for the actuator of the photoelectric guide system.

Three installation methods of the actuator of the photoelectric guiding system:

1. The working mechanism of the unwinding machine end: the axial movement of the reel. Photoelectric sensor position: fixed. Control effect: If the original reel is not rolled, the material is released at a fixed position by the rectification control.

2. The winding machine end actuator works: the reel moves axially. Photoelectric sensor position: installed on the winding car, moving with the car, the distance from the reel is more than 2 times the material width. Control effect: The winding car tracks the material, always keeping the material edge perpendicular to the reel, and finally makes the receiving roll neat.

3. The working mode of the intermediate guiding actuator: the working platform is rotated in the plane along the material input plane; the position of the photoelectric sensor: installed at the edge of the output surface. Control effect: This mechanism is stable, no damage to materials, and good effect.

The photoelectric guide sensor business indicates that the web guide system has the advantages of reasonable structure, stable performance, simple operation, sensitive and reliable, convenient maintenance, three-dimensional architecture design, and effective reduction of resource waste. Therefore, it is widely used in papermaking equipment, packaging equipment, printing equipment, leather equipment, textile equipment, film equipment, bonding equipment and other industrial equipment.
