Which Is Better, A Safety Chuck Or A Pneumatic Safety Chuck?

Safety Chuck Classification:

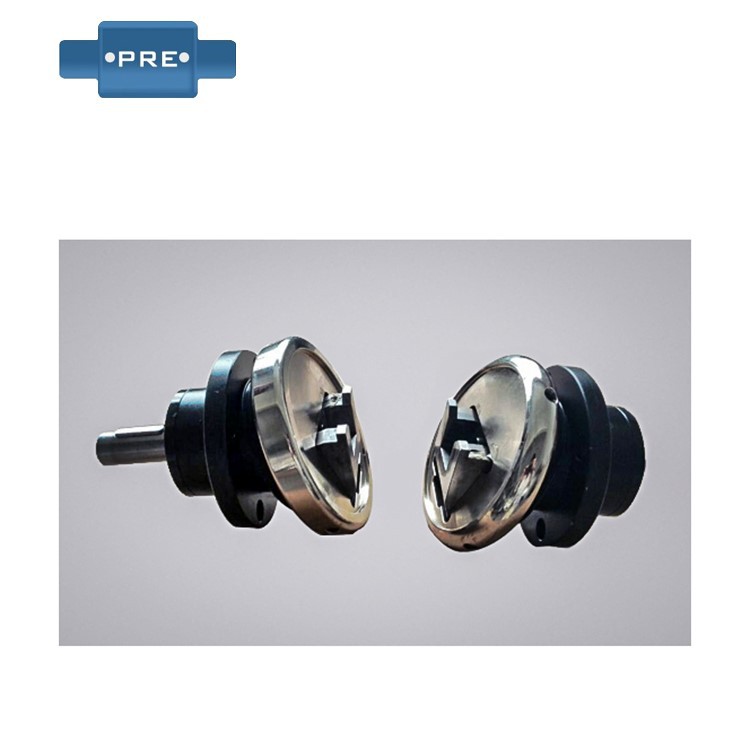

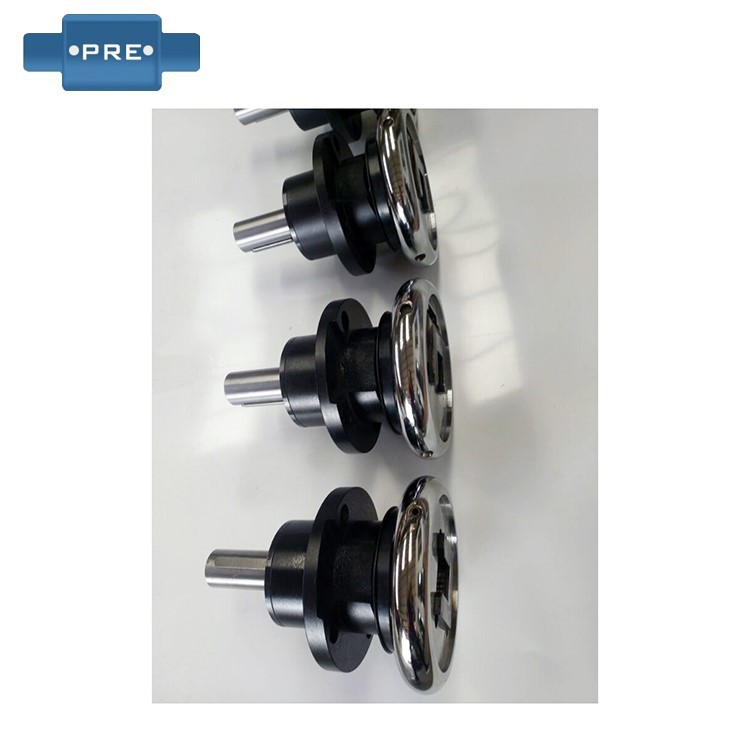

Flange mounted chucks, shaft seated safety chucks, mechanical chucks, shaftless chucks, torque chucks, pneumatic metal expansion key chucks.

Safety chucks can be categorized according to the type into shaft seating type, flange type, or horizontal mounting and vertical mounting. Standard safety collets are simple, practical and easy to install, providing fast, safe, reliable and simple coupling and disengagement for frequent movements such as coupling drives and disengaging. Safety collets provide quick, ready, simple and safe coupling and disengagement for frequent movements such as coupling drive and disengagement, and can be connected to pneumatic expanding shafts or square steel.

Pneumatic chuck is driven by pneumatic pressure to rotate the chuck, Chaoquan pneumatic chuck rotary cylinder built-in pneumatic collet chuck provides users with great convenience when installing the collet chuck system. JAP200/JASR/CPC/CPB pneumatic chucks have a body accuracy of 0.010mm and a high speed of up to 5000RPM, making it a high-level, high-performance pneumatic collet chuck. With hollow through holes, it can work with automatic feeding system to enhance productivity.JAP200 pneumatic chucks have been widely used in CNC lathe or machining machine workpiece clamping system, traditional lathe conversion automation, grinding machine or installed in CNC machining centers, such as the fourth axis indexing chuck and other various applications. Safety chucks are widely used in coating, slitting, printing, rewinding, laminating, papermaking, bag making, plastics and other related winding.

Precautions to be taken when installing the safety chuck:

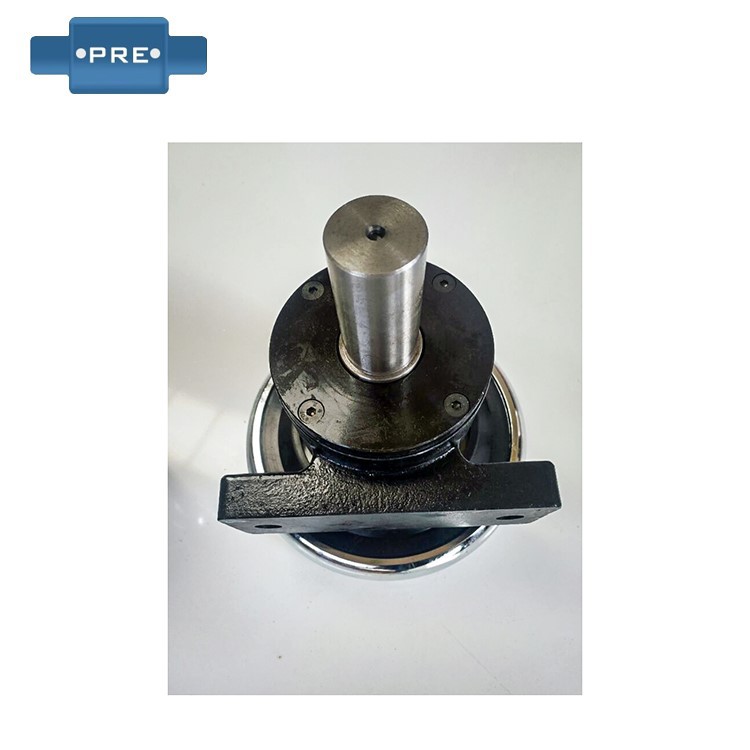

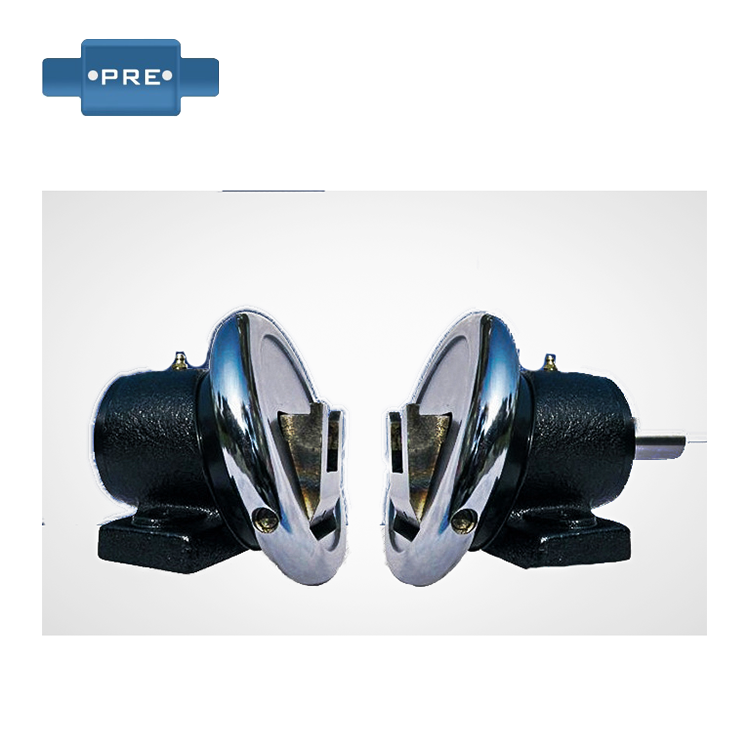

Safety chuck installation will be fixed foot base, air expansion shaft or square steel ends were installed into the safety chuck slot, safety chuck slot can be manually pushed to open, automatically return to the position when rotating, safety chuck tail end through the motor drive to drive the rotation of the chuck, thus driving the rotation of the winding shaft. However, due to the ordinary safety clevis in the card slot mandrel shaft head, usually are disc tilt generated rotation angle, there is a certain gap, in the process of receiving and releasing the volume of the roll width of the strict requirements of the accuracy of the occasions often do not meet the requirements, resulting in the volume of the roll material receiving and releasing the volume of the untidy, so the general requirements of the high precision of the conditions will be used to push the straight safety clevis.

Transmission connection selection of safety clevis and pneumatic safety chuck, on and off action frequently, applicable to work machinery, winding machine, cable equipment, paper equipment, trimming, feeding, positioning, tension sensors, packaging transmission connection selection of safety clevis and pneumatic safety chuck, on and off action frequently, applicable to work machinery, winding machine, cable equipment, paper equipment, trimming, feeding, positioning, tension sensors, packing
Machinery, printing equipment, textile machinery, cable and wire machinery and other working conditions, coiler tire forming machine, trolley open, curtain cutting machine and other equipment.

Advantages of the safety collet:
1) Safe and fast removal and loading of take-up/put-down reels.
2) Only opens when the opening is up, no safety hazard.
3) Inexpensive and economical.

Pneumatic Safety Chuck Advantages.
1) Safe and quick removal and loading of reels.
2) Can only be opened when the opening rings up, no need to worry about falling or slipping off.
3)Switch for pneumatic automatic control, can complete the artificial intelligence, the joint are selected sensor sensor control, the safety coefficient is better.
(4) High precision manufacturing, good installation effect, suitable for equipment with relatively high quality requirements.
Safety chuck and pneumatic safety chuck which is good to use, can be used according to customer working conditions and budget to decide; specific models can contact PRE factory.

Safety chuck and pneumatic safety chuck maintenance measures:
1) neat: tools, workpieces, accessories placed neatly; complete safety guards; line piping intact.
2) clean: equipment inside and outside clean; all sliding surfaces and screws, gears, racks, etc., no oil, no bruises; all parts of the oil leakage, water leakage, gas leakage, electricity leakage; chips and garbage clean.
3) Lubrication: refueling and oil change on time, oil quality meets the requirements; oil pots, oil guns, oil cups, linoleum, oil line is clean and complete, the oil label is bright, and the oil circuit is smooth.
4)Safety: implement the system of manning the machine and handover; familiarize with the structure of the equipment and comply with the operating procedures, use the equipment reasonably, maintain the equipment carefully and prevent accidents.

Safety chuck and pneumatic safety chuck attention:
The safety chuck can automatically center the workpiece, so that the positioning and clamping is completed at the same time. But the clamping force is small, suitable for clamping round, hexagonal workpiece blanks, bars and turned parts. When using the processed surface as the clamping surface, it should be wrapped with a layer of copper to avoid damage to the processed surface.
Safety chuck after a period of time, the large bevel gear will have residual iron cutting affect its clamping parts. To regularly clean up the internal claw back bevel gear and large bevel gear. According to the size of the jaws back bevel gears in order to install, must be clamped together at the same time in order to use.
Structural characteristics of safety chucks and precautions for use. When clamping workpieces, use a reasonable and reliable clamping reference and find the correct clamping position. Use a sleeve when clamping.
