What Should We Do If The Core Size Is Not The Same As The One That Is Normally Used?

In this case, a bushing, or adapter, is indispensable.

Meaning of inflatable shaft adapter:
The inflatable sleeve clamp is also called the inflatable drum, which is used on the inflatable shaft and the transmission roller, and is used instead of a larger retracting and unwinding shaft when doing rewinding and discharging, for example, the shaft used on the machine is a 3-inch inflatable shaft or a smooth roller, and suddenly there is an increase in new materials, and a 6-inch inflatable shaft is needed, and you don't want to do a 6-inch inflatable shaft, in this case, you can use a 3-turn 6-inch sleeve clamp.
And the inflatable sleeve clamp also has tile type and key strip type, the inner diameter is determined according to the inflatable shaft, the outer diameter is determined according to the current reel, if the inflatable shaft is relatively short, below 500-600 mm, a shaft with 1 can be, if the inflatable shaft has reached 1 meter or 2 meters, a shaft is well equipped with 2 or 3 clamps.

The working principle of the inflatable sleeve clamp:
The working principle of the air expansion sleeve clamp is very simple, inflated with the air nozzle with the air strength aligned with the shaft, the parts will have an effect, press the sliding gas release switch of the air nozzle, and the key bar will change back to its original appearance. And in normal work, the advantages of the air expansion sleeve are also very significant, one is the inflation period, the separation of the inflation nozzle and the gas strength equipment is rapid, which can ensure that the gas pressure change can be completed within three seconds. In addition, in terms of load capacity, these shafts can be regulated to a certain extent. According to the actual production load requirements, the size of the shaft diameter will be determined to a certain extent, and the material of the shaft itself can also withstand a certain degree of pressure and load.

Inflatable sleeve structure and advantages:

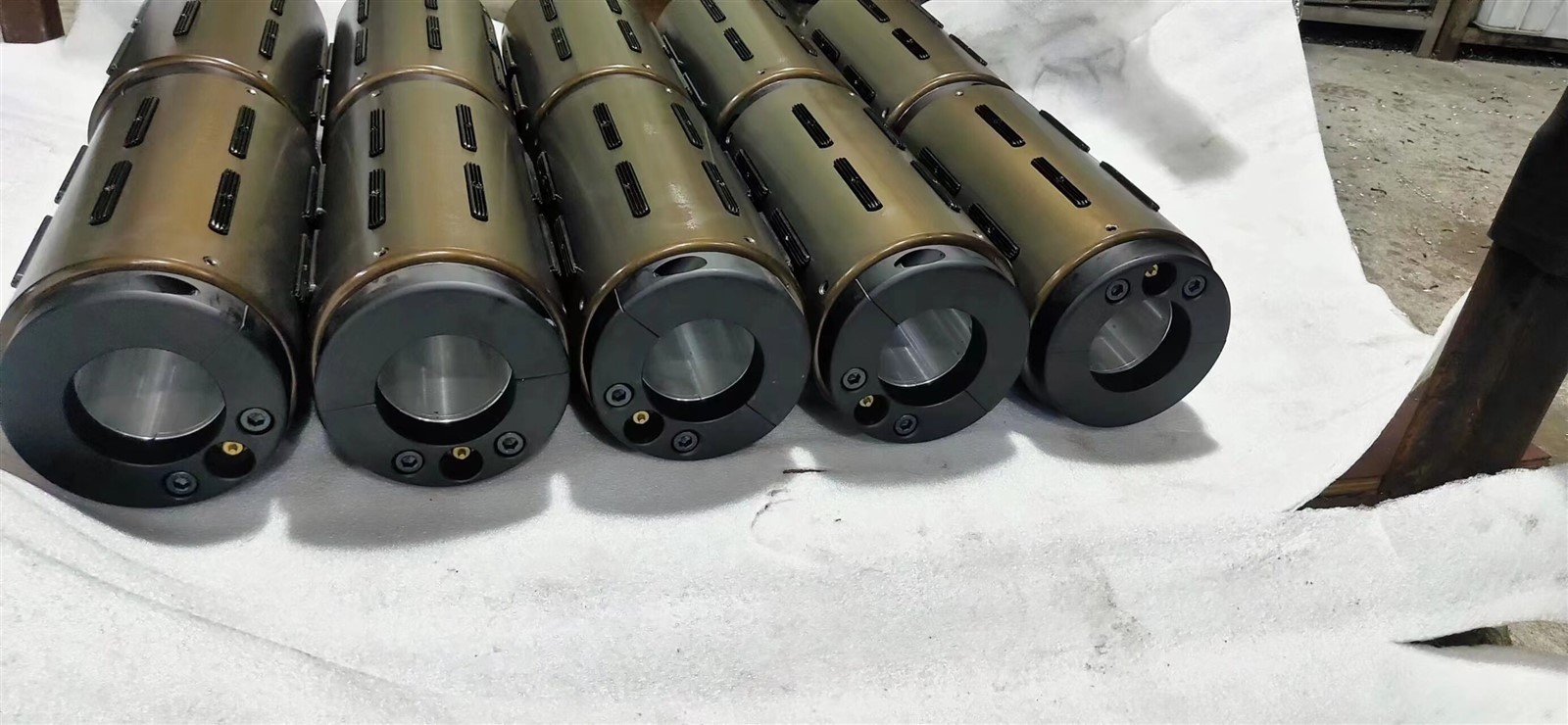

The inflatable sleeve clamp or "inflatable sleeve" is mainly composed of the front sleeve, the rear sleeve, the cylinder, the inner tube, the air bag, the convex keyboard and other parts. The expansion set is made of high-quality aluminum, with oxidized surface, high-quality airbags and fast inflators. Good sealing effect, long service life and easy maintenance. Advantages: light weight, easy loading and unloading.

Product specifications for inflatable sleeve clamps:
The inflatable sleeve clamp is divided into key inflatable sleeve and plate inflatable sleeve. Commonly used specifications are: 3 inches to 6 inches, 3 inches to 8 inches, 3 inches to 10 inches, 3 inches to 12 inches. After inflation, the diameter rises by 8mm. The length is 200mm, 250mm, 300mm, 400mm, 500mm, etc. (The length can be ordered according to customer needs, and the length is not limited)

Application range of inflatable sleeve clamps:
The inflatable sleeve clamp has a wide range of applications, and can be used in coiling and unwinding equipment and assembly lines, such as papermaking machinery, plastic film making machinery, coating machines, laminating machines, rotary printing machines, slitting machines, board making, foil making, film, tanning, coating, laminating paper tube machines, textiles, printing and dyeing, cigarettes, carpets and other industries are widely used.

How do you choose a reliable manufacturer of inflatable clamps that meets your needs? We PRE will do this:
1. The size of the demand can be customized according to the customer's needs.
2. According to the customer's material, structure, size and other needs, the manufacturer's technician will do their best to assist and put forward reasonable suggestions.
3. The manufacturer's salesman will continue to follow up the production process and feedback the production progress to the customer in a timely manner.
4. After production, the inner and outer packaging will be carefully inspected to prevent the product from being damaged during transportation.
5. After delivery, the logistics tracking information will be sent to the customer in time.
6. When the goods arrive at the customer, if the customer has questions related to the product, we will answer it patiently and assist the product to be used normally on the customer's machinery.
