What Does An Air Shaft Adapter Do?

Such reels are used in production, and the core size is not the same as the one commonly used, in which case an adapter is required. The adapter can be mounted on an inflatable shaft to make its actual diameter larger or smaller to match the cores on the production line without the need to make a new inflatable shaft.

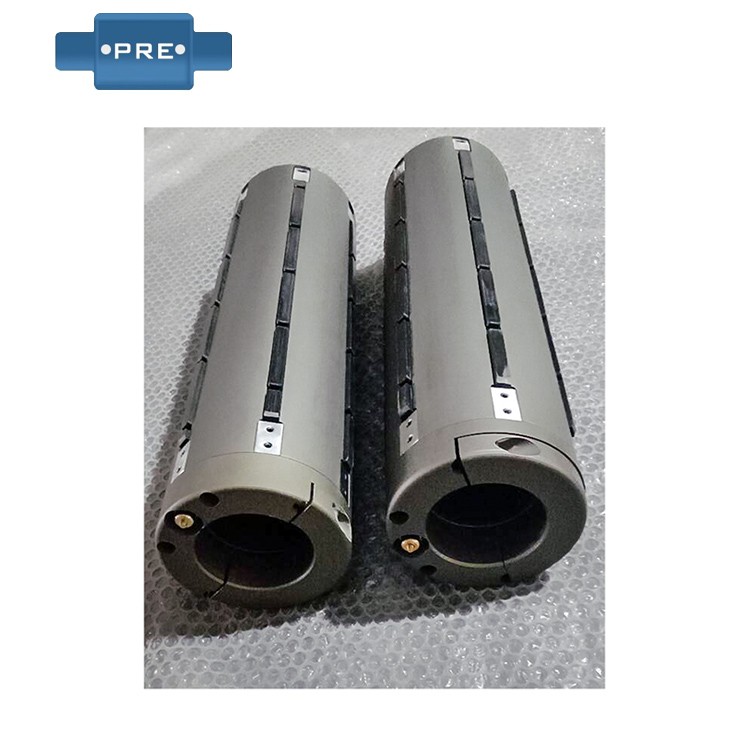

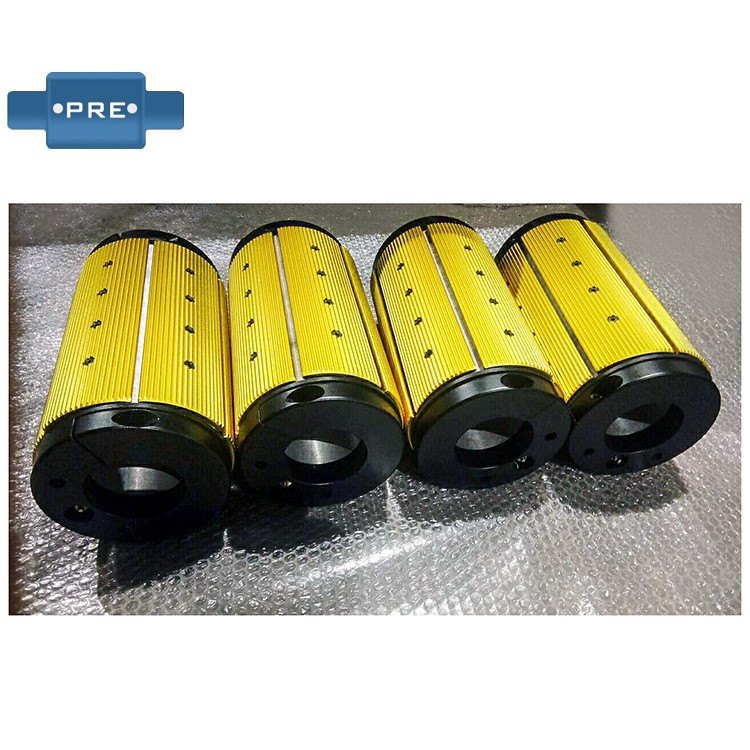

For example, if the outer diameter of the existing inflatable shaft is 3 inches, but the inner diameter of the reel core is 6 inches, then only a 3" VS 6" core adapter is needed to solve this problem. , the diameter and length of the adapter, PRE China factory can customize the size according to customer needs, about the diameter, can be customized 3" VS 6", 3" VS 8", 3" VS 12", etc.; About the length, 200mm, 300mm, 400mm, etc. can be customized.

The inflatable shaft is divided into key inflatable shaft, plate inflatable shaft, through-bar inflatable shaft, and the inflatable shaft adapter can also be divided into these types, and the material can be aluminum alloy or stainless steel.

Because the air shaft adapter is the same as the inflatable shaft, it can flexibly adapt to different materials and processing requirements, so there are generally places where the pneumatic expanded shaft is applied, and the inflatable shaft adapter can be applied to it.
Inflatable shafts are mainly used in the processing process of winding, printing, coating and other industries, and the following are the common application areas of inflatable shafts:
1) Printing industry: inflatable shafts are widely used in printing machines. They can be used to support and hold printed materials such as paper, plastic film, film, etc., and the inflatable shaft is used to hold and release the material by means of internal inflation or grapefruit gas.
2) Coating industry: During the coating process, the inflatable shaft can be used to support and convey the coating material, such as glue, coating, adhesive, etc. By clamping the inflatable shaft, the coating material can be evenly coated on the substrate.
3) Packaging industry: inflatable shaft can be used in packaging machinery. For example, for tension control of rolls, tapes or films, to ensure the flatness and stability of packaging materials,
4) Textile industry: inflatable shaft can be used in the processing process of yarn and cloth on textile machinery. They can provide stable tension control to maintain the uniformity and quality of textiles
5) Stretching and peeling industry: The inflatable shaft can be used for material control in the stretching or stripping process, for example, in the process of stretching coating, the inflatable shaft can be used to control the tension of the stretched film
6) Paper products and packaging industry: In the paper products processing and packaging industry, inflatable shafts are often used to support paper rolls and achieve quick replacement and trimming.

It is mainly used in the following mechanical equipment:
Drying machine, flexo printing machine, gravure machine, trademark printing machine, coating machine, leather machine, setting machine, embossing machine, slitting machine, die-cutting machine, rewinding machine, rewinding machine, paper tube machine, laminating machine, laminating machine, film blowing machine, foaming machine, laminating machine, embossing machine, paper machine, non-woven machine, cloth inspection machine, hot stamping machine, battery equipment and other related machinery.

Contact factory in Guangdong, China

(Over 20 years experience in,air shaft, core adapter production )
