About The Perception Of Air Expansionable Chucks

An inflatable chuck is a mechanical device that uses gas expansion to clamp a workpiece, and it can be used to fix and clamp workpieces of various shapes, such as round, square, irregular shapes, etc.
The inflatable chuck works on the principle that when the gas enters the inside of the inflatable shaft, it creates pressure on the piston inside, and this pressure pushes the piston rod and chuck to expand outward, thus clamping the workpiece. When the gas pressure is released, the chuck shrinks, loosening the fitting.

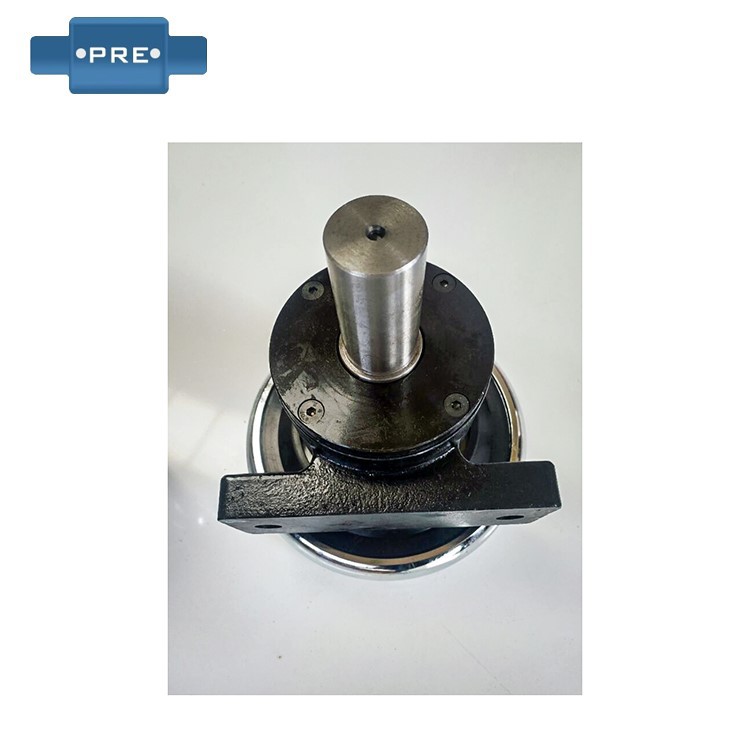

The inflatable shaft safety chuck is a very safe chuck, it has an automatic tensioning function, which can realize the automatic tensioning of the chuck, so as to ensure the stability and safety of the chuck, and effectively prevent the slippage of the chuck during use, it can be applied to various machine tools, and can play a role in safety protection.

Classification of inflatable chucks:
1) Rubber inflatable chuck: This kind of chuck is made of rubber material, which has excellent elasticity and wear resistance, and is suitable for clamping work with high precision requirements, and the softness of rubber makes the chuck better adapt to workpieces of different shapes and sizes to achieve tight clamping.
2) Aluminum alloy inflatable chuck: Aluminum alloy inflatable chuck is favored for its light weight and excellent mechanical properties, it has high strength and hardness, while maintaining a certain toughness, suitable for occasions with high requirements for clamping force.
3) Nylon inflatable chuck: Nylon inflatable chuck has good wear resistance and corrosion resistance, and can maintain stable performance in harsh working environments, in addition, nylon material also has certain self-lubrication, which helps to reduce friction and wear during clamping.

The inflatable chuck has the following advantages:
1) The clamping force is large, and the workpiece of various shapes can be fixed, and it is not easy to deform.
2) The workpiece can be positioned and clamped during the machining process to improve the machining accuracy and efficiency.
3) The operation is simple, safe and reliable, which can reduce the labor intensity of workers.
4) It can be reused and has a long service life.
5) High safety: The inflatable chuck will not cause damaging stress on the workpiece like the mechanical chuck, so it is safer.
6) Wide range of application: The inflatable chuck is suitable for workpieces of various shapes, such as round, square, polygon, etc.

The inflatable chuck can be applied to various machine tools, such as CNC machine tools, lathes, milling machines, etc., which can effectively ensure the accuracy of the machine tool, ensure the processing quality of parts, and reduce the damage of the machine tool. Its main application range includes papermaking machinery, plastic film making machinery, coating machines, laminating machines, rotary printing machines, slitting machines and other equipment, which have been widely used in these industries. Specifically, it is suitable for the following places:
1) Machine tool processing: The inflatable chuck can be used for the processing of various machine tools, such as lathes, milling machines, drilling machines, etc. The use of an inflatable chuck on the machine tool can firmly fix the workpiece on the machine tool, improving the machining accuracy and efficiency.
2) Tool manufacturing: Inflatable chucks can be used to manufacture various tools, such as turning tools, milling cutters, drills, etc. When manufacturing tools, the inflatable chuck can firmly fix the tool on the manufacturing machine, improving the manufacturing accuracy and efficiency.
3) Aerospace manufacturing: Inflatable chucks can be used in aerospace manufacturing fields, such as aircraft, rockets, etc. In these areas, inflatable chucks can be used to hold a variety of parts and assemblies to improve manufacturing accuracy and efficiency.
4) Automobile manufacturing: Inflatable chucks can be used in the field of automobile manufacturing, such as cutting, drilling, milling, etc. of auto parts. In the process of automobile manufacturing, inflatable chucks can be used to fix auto parts and improve manufacturing accuracy and efficiency.

How to choose the right inflatable chuck?When choosing an inflatable chuck, you need to consider the following factors:
1) Workpiece material and size: the first thing to consider is the material and size of the workpiece to be clamped, different materials and sizes of workpieces need different types and specifications of inflatable chucks, generally speaking, the larger the workpiece, the harder the material, you need to choose an inflatable chuck with greater clamping force.
2) Clamping accuracy and stability: Clamping accuracy and stability are important factors to consider when choosing an inflatable chuck, the higher the clamping accuracy and stability, the better the quality of the processed products, therefore, it is necessary to choose an inflatable chuck with appropriate accuracy and stability according to the processing requirements.
3) Environment and conditions of use: The environment and conditions under which the inflatable chuck will be used also need to be considered. For example, if the working environment temperature is high or the humidity is high, you need to choose an inflatable chuck with good temperature and humidity resistance, in addition, you need to consider the power, air pressure and other factors of the machine tool.

When using an inflatable chuck, there are a few key issues to be aware of:
1) Select the appropriate clamp and air tube: Select the appropriate clamp and air hose according to the specific needs to ensure that the chuck can firmly clamp the workpiece and prevent the workpiece from moving or falling off during the processing process.
2) Replace damaged parts in time: During the use of the inflatable chuck, the clamp block and the trachea may be worn or damaged. In order to ensure the stability and safety of the chuck, these damaged parts should be checked regularly and replaced in time.
3) Pay attention to the operation specifications: when using the inflatable chuck, the operation specifications should be strictly adhered to to avoid the loss of control of the fixture due to misoperation, resulting in danger, and the operator should be familiar with the working principle and correct use of the inflatable chuck to ensure safe use.
4) Check the integrity of the chuck: Before using the inflatable chuck, the chucks should be carefully checked for defects such as cracks and deformations. As soon as these problems are discovered, the chuck should be replaced immediately to ensure the safety and stability of the machining process.
5) Regular maintenance and maintenance: In order to prolong the service life of the inflatable chuck, regular care and maintenance are required, which includes cleaning the chuck, checking the wear and tear of the parts, and replacing the severely worn parts in time.
