The Birth Of The Air Shaft Adapter

The reason for the birth of the air shaft adaptor:
The birth of the inflatable sleeve is because of the inconvenience of the use of the large diameter inflatable shaft and the high manufacturing cost is born, let's imagine, if a six-inch inflatable shaft, up to 1.5-2 meters, the weight is heavy? or less than 100KG, so the use of our inflatable shaft enterprises is quite a headache. The inflatable shaft manufacturer came up with a solution, if the weight of the product is not particularly heavy, then choose to put a fixed paper tube at both ends of the inflatable shaft, which also plays the effect of receiving and discharging, and the weight of the shaft itself is only about 10KG heavier than the three-inch inflatable shaft, so it is much more convenient to use.

The inflatable sleeve clamp is also called the inflatable drum, which is used on the inflatable shaft and the transmission roller, and is used instead of a larger retracting and unwinding shaft when doing retraction and discharging, for example, the shaft used on the machine is a 3-inch inflatable shaft or a smooth roller, and suddenly there is an increase in new materials, and a 6-inch inflatable shaft is needed, and you don't want to do a 6-inch inflatable shaft, in this case, you can use a 3-turn 6-inch sleeve clamp.

The inflatable sleeve clamp also has a tile type and key strip type, the inner diameter is determined according to the inflatable shaft, and the outer diameter is determined according to the current paper tube, if the inflatable shaft is relatively short below 500-600 mm, a shaft can be equipped with 1, if the inflatable shaft has reached 1 meter or 2 meters, a shaft is well equipped with 2 or 3 sleeves to use.

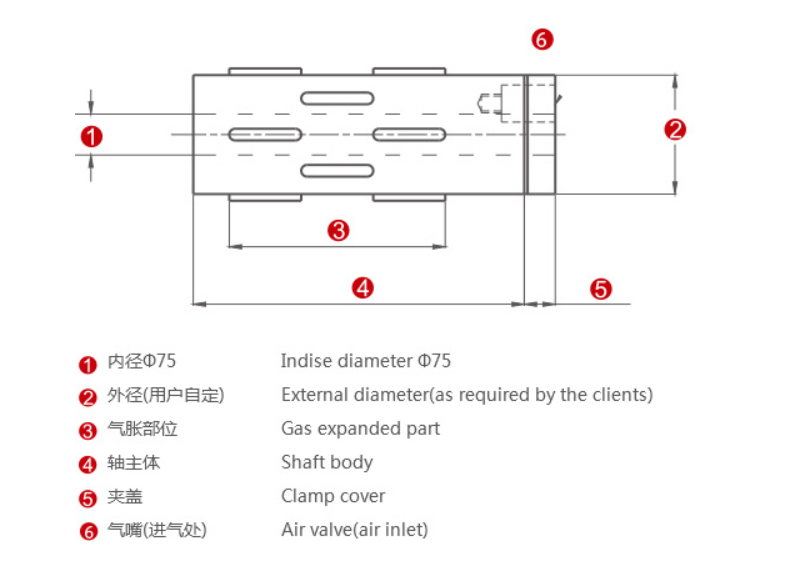

Structural characteristics of the inflatable sleeve: the inflatable sleeve is mainly composed of the front sleeve, the rear sleeve, the cylinder, the inner tube, the airbag, the convex keyboard and other parts. The expansion set is made of high-quality aluminum, with oxidized surface, high-quality airbags and fast inflators. Good sealing effect, long service life and easy maintenance. Light weight, easy to load and unload.

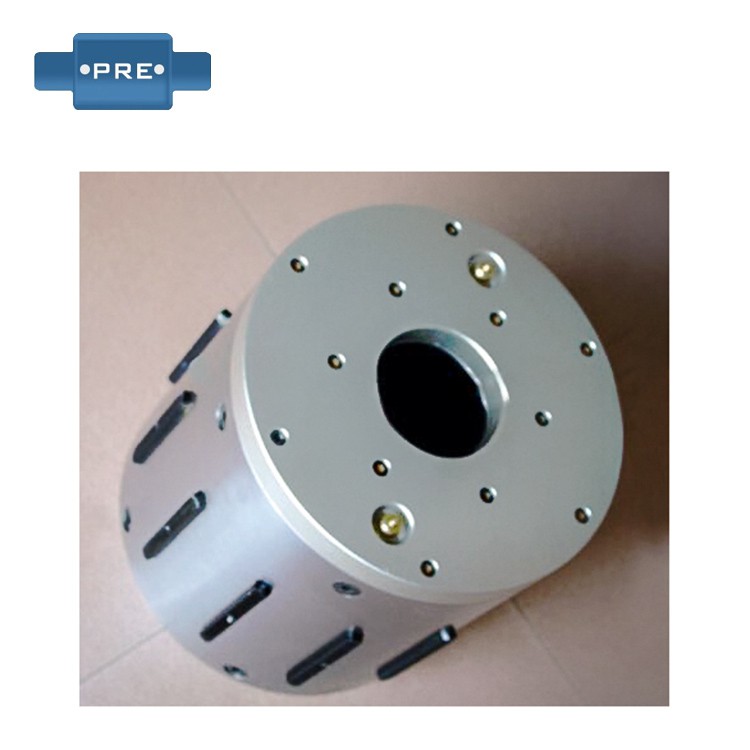

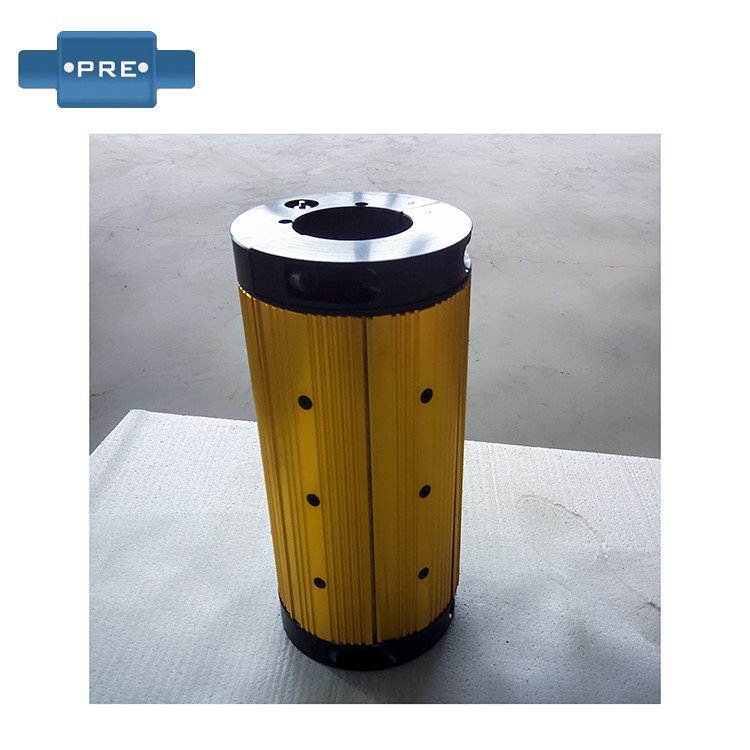

Product specifications of inflatable sleeve clamps: divided into key inflatable sleeves and plate inflatable sleeves. Commonly used specifications are: 3 inches to 6 inches, 3 inches to 8 inches, 3 inches to 10 inches, 3 inches to 12 inches. After inflation, the diameter rises by 8mm. The length is 200mm, 250mm, 300mm, 400mm, 500mm, etc. (The length can be ordered according to customer needs, and the length is not limited)

Technical parameters of the inflatable sleeve clamp: The outer diameter of the main body of the air expansion sleeve is Φ150mm, the outer diameter of the action is Φ155mm, and it is suitable for paper tubes Φ149-153mm, 201-205mm, 252-256mm, 302-305mm, and the main body length is 200mm, 250mm, 300mm, 400mm, 500mm, etc.

Structural application of inflatable sleeve clamp:
The inflatable sleeve clamp is a middle through hole, worn on the inflatable shaft or used on the smooth roller, can be made into a mechanical, can also be made into a separate inflatable one, if it is used on a smooth transmission roller, it is necessary to add expansion rings at both ends of the inflatable sleeve clamp to play a fixed role, if it is used on the inflatable shaft, it can be used on one side of the ring, can also be on both sides.

Choose the right inflatable sleeve according to your needs:

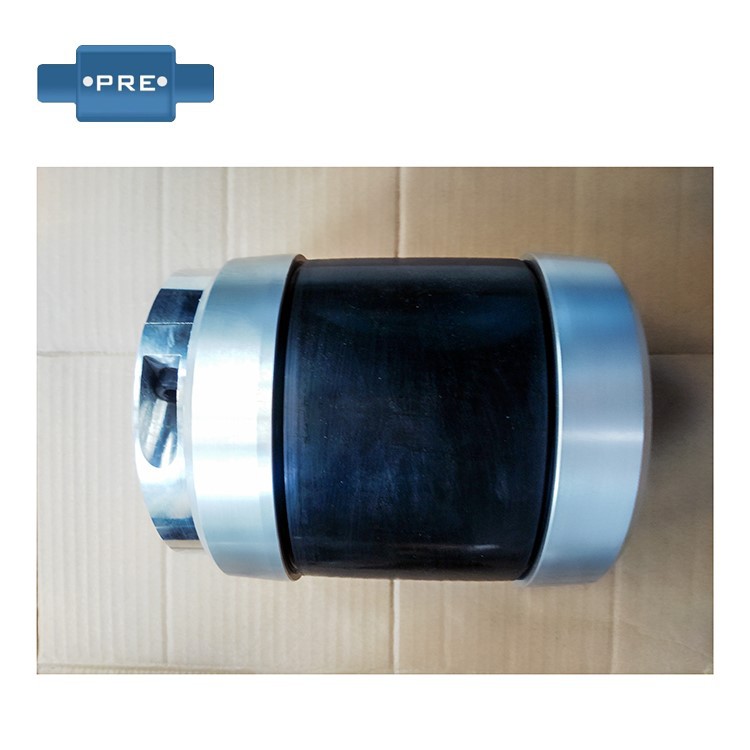

The inflatable sleeve can be divided into three types: rubber inflatable sleeve, aluminum alloy inflatable sleeve and nylon inflatable sleeve. The surface of the rubber inflatable sleeve is made of rubber, which is in contact with the paper tube and is relatively soft, so it is much better than the aluminum alloy inflatable sleeve in terms of service life; In terms of cost and cost, in fact, there is not much difference between the two, which is basically the same. Therefore, when choosing an inflatable suit, our inflatable suit users can choose their favorite inflatable sleeve according to their actual needs or preferences.

Application areas of inflatable sleeve clamps:
Because the working principle of the inflatable sleeve is the same as that of the inflatable shaft, the scope of use of the inflatable sleeve is also the same as that of the inflatable shaft. They are widely used in packaging and printing industry, paper film industry, plastic printing industry, battery equipment industry, coating and slitting industry and so on.
