Let's Take A Look At The Commonly Used 3''air Expanded Shaft

The pneumatic shaft is an automatic equipment driven by air pressure, which has the characteristics of simple structure, convenient operation and high work efficiency. Among the many types of inflatable shafts, 3-inch inflatable shafts are widely used in various industrial production fields due to their moderate size and high load capacity.
For example, in the packaging industry, the 3-inch inflatable shaft can be used to drive the sealing and wrapping actions of the packaging machine; In the printing industry, it can be used to drive the cylinder of the printing press; In the textile industry, the 3-inch inflatable shaft can be used to drive the spindles of textile machines, for example.

The air expansion shaft, also known as the inflatable roller, is a common winding and unwinding shaft in paper, coating, printing and other industries. After being inflated by compressed air, the key bar on the surface of the shaft can be raised (the shaft diameter increases), and the key bar on the surface is quickly retracted after deflation (shaft diameter restoration) for tightening the cylinder core, and the inflatable shaft is used as an independently designed part, from 1-6 inches, of which the 3'' inflatable shaft is a standard size.
The length can be determined according to the actual needs of customers. Commonly used inflatable shafts are divided into key-type inflatable shafts and slat-type inflatable shafts.

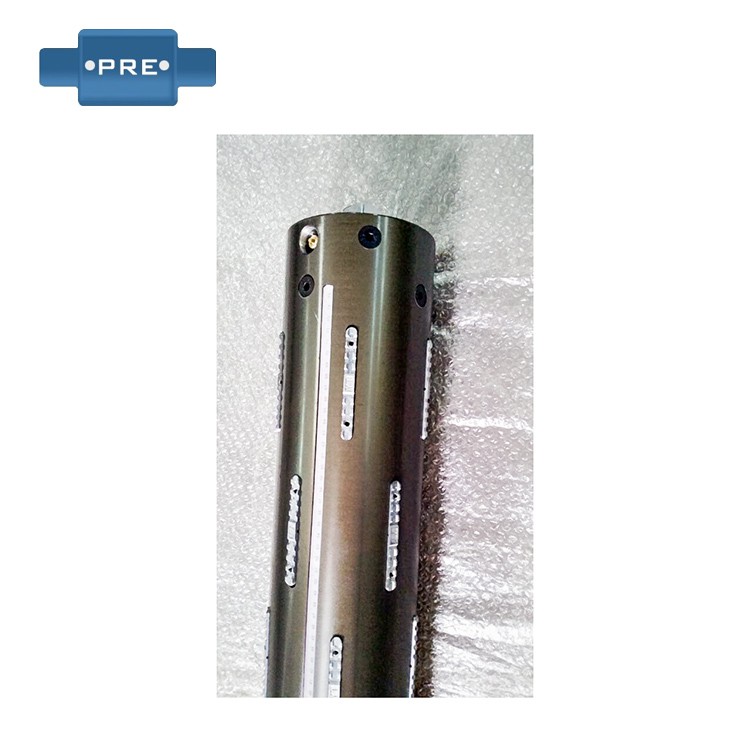

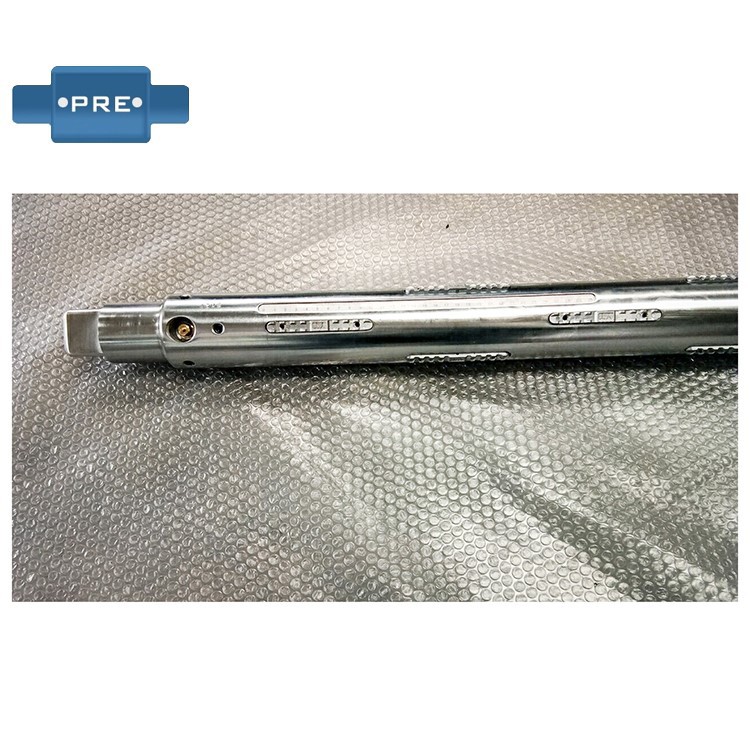

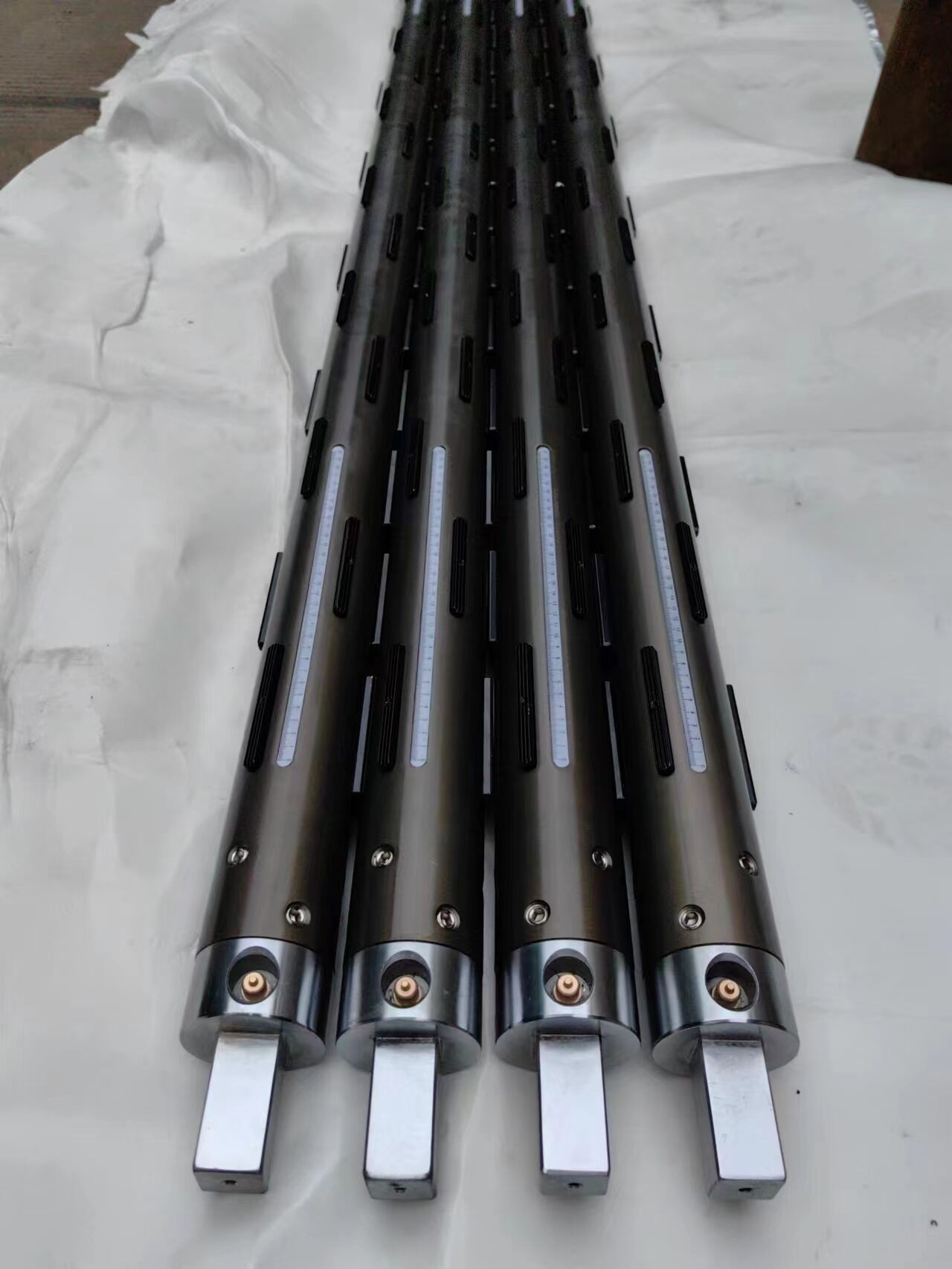

1) Keybar inflatable shaft: The surface of the inflatable shaft is regularly distributed with long slots, and the keybar is fixed on the inner pressure plate through the card slot. It is suitable for mechanical winding to carry heavier items.
2) Slatted inflatable shaft: the surface of the inflatable shaft is regularly distributed with round holes, and the outer pressure plate is fixed on the inner pressure plate through nails and support. It is suitable for machinery with high winding precision or items with light winding.

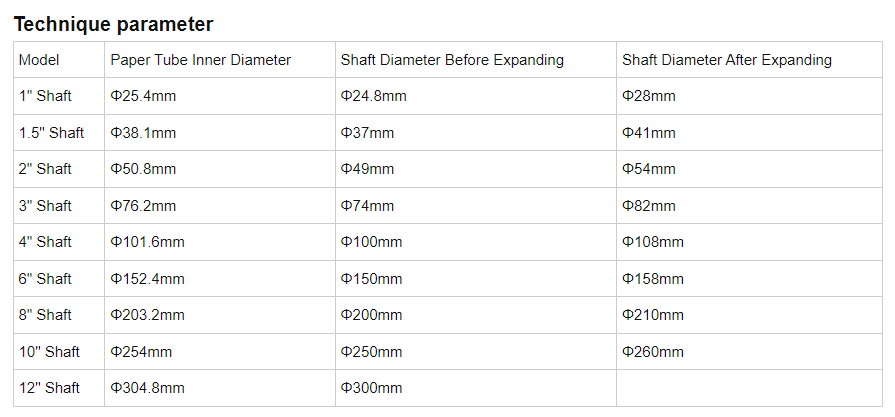

The specifications and standard dimensions of the 3" vane type (tile type) inflatable shaft are as follows:
1) Diameter: 84mm.
2) Length: can be customized according to actual needs.
3) Unilateral expansion height after inflation: up to 5mm to 6mm. For example, the diameter is 74 mm to 75 mm before expansion and 79 mm to 82 mm after expansion.
4) Special swelling height: need to be requested.
5) Usually use coil inner diameter: 76mm.

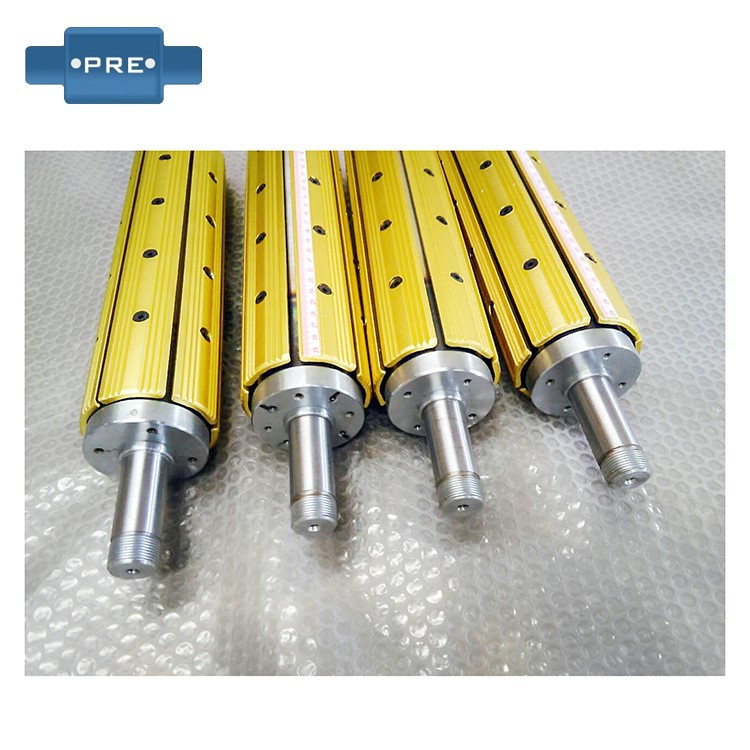

Features of 3" vane type (tile type) inflatable shaft:
1) Aluminum alloy tiles are used to expand and shrink flexibly.
2) Equipped with high-quality rubber liner and fast filling and exhaust nozzle, the sealing effect is good.
3) Long service life, detachable shaft head, easy maintenance.
4) After inflation, the expansion part is the plate, which usually expands up to 4mm to 5mm in height.
5) Special expansion height needs to be required separately.

When customizing the 3" inflatable shaft, the structural composition and parameters of the inflatable shaft are functional:
1) The flatulence part, which is determined by the maximum width of the material, this length needs to be noted that it is necessary to reserve an extra 50MM margin, for example, the material is 200mm width, the length of the flatulence part is 250mm is the best, and the specific length is based on the actual width of the material.
2) flatulence diameter, this is determined by the size of the paper tube of the material, such as the 3-inch inflatable shaft we commonly use, the diameter before the flatulence is 74mm, suitable for about 76.2 paper tubes, the diameter of the inflatable shaft is based on the inner diameter of the paper tube to leave 2-3mm margin is the best, too large margin will appear to rise tightly, shaking, slipping and other problems
3) Shaft head, the shaft head needs to be designed according to each equipment, there are sub-cantilever inflatable shaft, double shaft head inflatable shaft, the shaft head is the main load-bearing support point, PRE China factory will use different materials according to different load-bearing and axle heads to achieve the required load-bearing.

Advantages of inflatable shafts:
1) The inflation operation time is short, and the separation and placement of the inflatable shaft and the paper core can be completed in only 3 seconds, and there is no need to separate any parts on the end side of the shaft to tightly engage with the paper core.
2) Paper core placement is simple: with the action of inflation and deflation, the paper core can be moved and fixed in any position on the shaft surface.
3) Large bearing weight: according to the actual needs of customers, the size of the shaft diameter can be determined, and the use of high hard steel to increase the bearing weight.
4) High economic efficiency: The shaft is designed for special functions, and can be used for all kinds of thick, thin, wide and narrow paper tubes.
5) Simple maintenance and long service time: The inflatable shaft is a single part, and each part in its structure has a fixed specification, which can be interchangeable and convenient, making it easy to maintain.
