Why Is The Air Shaft Adapter So Popular in The Industrial Production Of Winding And Unwinding?

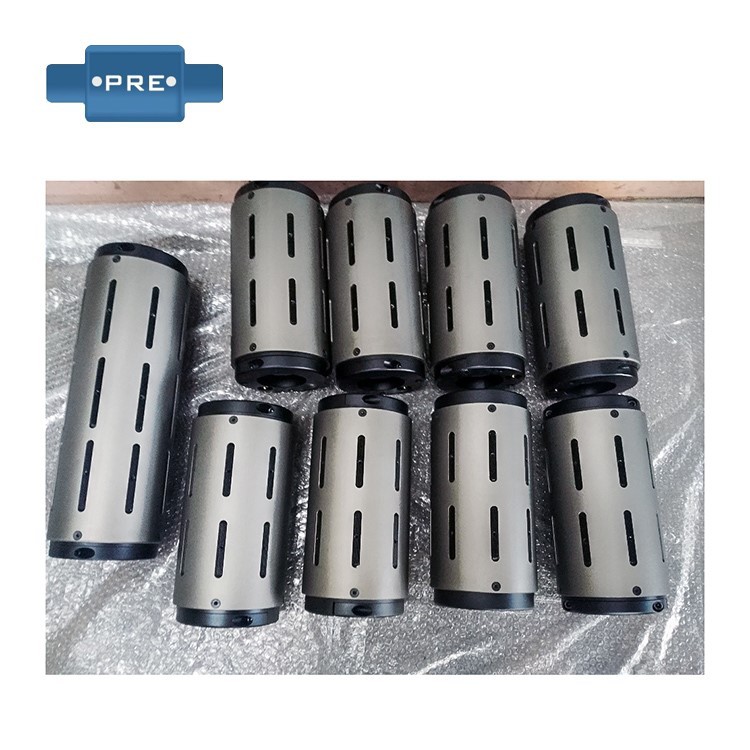

The core adaptor can also be written as "inflatable sleeve" and "inflatulating bulge", and so on. For example, the shaft used on the machine is a 3-inch inflatable shaft or a smooth roller, and suddenly there is a new material added, and a 6-inch inflatable shaft is needed, and you don't want to do a 6-inch inflatable shaft, in this case, you can use a 3-turn 6-inch clamp. The air sleeve is suitable for coating, printing, rewinding, papermaking, plastic and other related machinery.
To put it simply, the inflatable sleeve is a cylindrical sleeve, which has an inflatable function, and the outer diameter is increased outside the inflatable shaft, which has the effect of changing the diameter. It can be applied to larger inner diameter rolls.

Structural features:
1. The air sleeve is mainly composed of front sleeve, rear sleeve, cylinder, inner tube, air bag, convex keyboard and other parts.
2. The expansion material is made of high-quality aluminum, and the surface is oxidized.
3. Equipped with high-quality airbags and fast inflator nozzles.
4. Good sealing effect, long service life and easy maintenance.

The reason why the inflatable sleeve is so popular has a lot to do with its product performance:
1. Short inflation time. The separation of the inflator from the gas strength device is fast, and the gas pressure can be changed within three seconds.
2. In terms of bearing capacity, the inflatable sleeve can be regulated to a certain extent. According to the actual production load requirements, the size of the shaft diameter will be determined to a certain extent, and the material of the shaft itself can also withstand a certain degree of pressure and load.
3. When the air sleeve parts are working, its work efficiency is very high, which is suitable for the economic product needs of printing and other industries, so as to further broaden the scope of product application and play a very important role in the production of various machinery.
4. Wide range of use. The inflatable sleeve clamp is a middle through hole, which can be used on the inflatable shaft or a smooth transmission roller, which can be made into a mechanical one, or can be made into a separate inflatable one, if it is used on a smooth transmission roller, it is necessary to add an expansion ring at both ends of the inflatable sleeve clamp to play a fixed role, if it is used on the inflatable shaft, it can be used on one side to make a ring, or both sides. The design of the inflatable sleeve is designed for the actual work needs, and it can be applied to various types of coiled pipes such as thickness, thinness, width and narrowness.

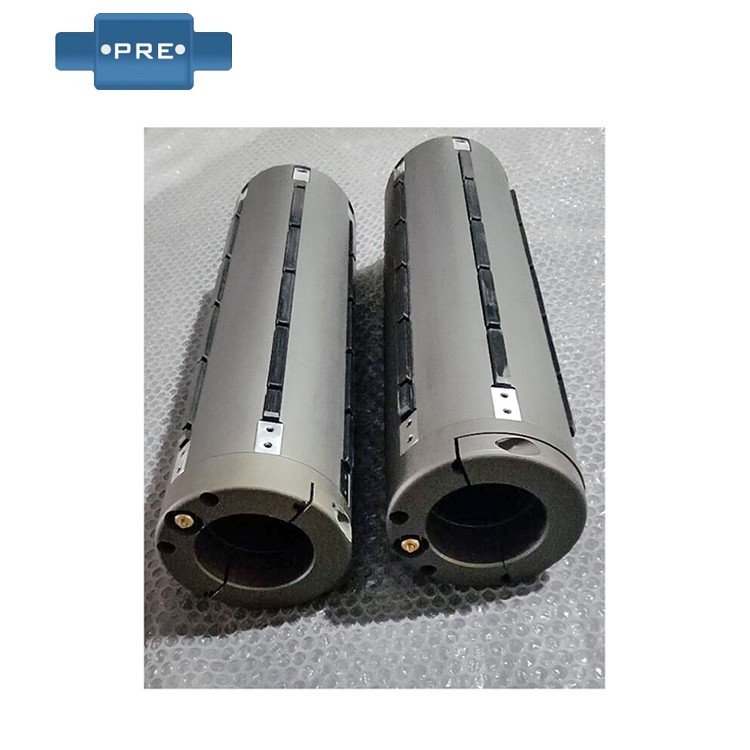

5. Easy to customize. The inflatable sleeve clamp also has a tile type and key strip type, the inner diameter is determined according to the inflatable shaft, the outer diameter is determined according to the current paper tube, the inflatable shaft is relatively short below 500-600 mm, a shaft can be equipped with 1, if the inflatable shaft has reached 1 meter or 2 meters, it is best to match 2 or 3 clamps on a shaft with detailed design and use methods can be found PRE China factory.
6. Cost savings. Because it is cheaper to customize the inflatable sleeve than to re-customize the inflatable shaft.
7. Long use time and simple maintenance. Although the inflatable shaft is a mechanical accessory, each part in its own structure has a fixed specification and can be used interchangeably, making it easy to maintain.
8. Among them, the key inflatable shaft expands up a single key bar, and the fulcrum spreads to each key bar to balance the force, which can be applied to items with heavy mechanical winding capacity.

PRE China factory will check the parts connection of the air shaft adapter before shipping the inflatable sleeve, and the inspection steps are as follows:
1. Whether the connection wires between the electrical cabinet and the equipment are damaged, and whether there is a split or hazard at the bend of the cable.
2. Whether the placement of the power line and the signal line is reasonable, and whether the cable connection is accurate and reliable.
3. Whether the power supply inlet of the machine tool is reliable grounding, and whether the specification of the grounding wire meets the requirements.
4. Whether the grounding of the signal shield wire is accurate, whether the wiring on the terminal board is robust and reliable, and whether the system grounding wire is reliable.
5. Are the bus and expansion cables of the system accurately connected, and are the connector plugs thoroughly pierced and tightened? The setting of the module address (e.g., requirements) is not exact.
6. Whether there is a short circuit or inaccurate connection between all low-voltage PLC inputs (such as DC24V and high-voltage (such as AC220V) control loops.
7. Whether there is a "short circuit" appearance in the output of all PLCs, etc.
