What Is The Role Of The Safety Chuck in The Process Of Rewinding And Unwinding Paper And Film

The safety chuck is a device used on the reels for receiving and unloading, which is quick to respond and save the operator's time in loading and unloading. When replacing materials, there is no need to move the structure of the machine every time. The safety chuck provides the operator with the function of agile replacement of materials at the end of receiving and unloading.

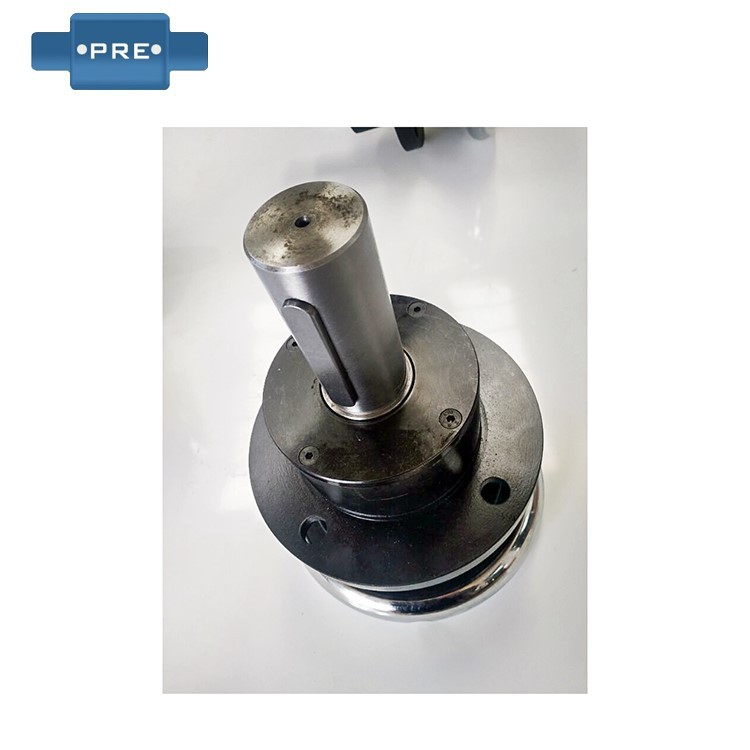

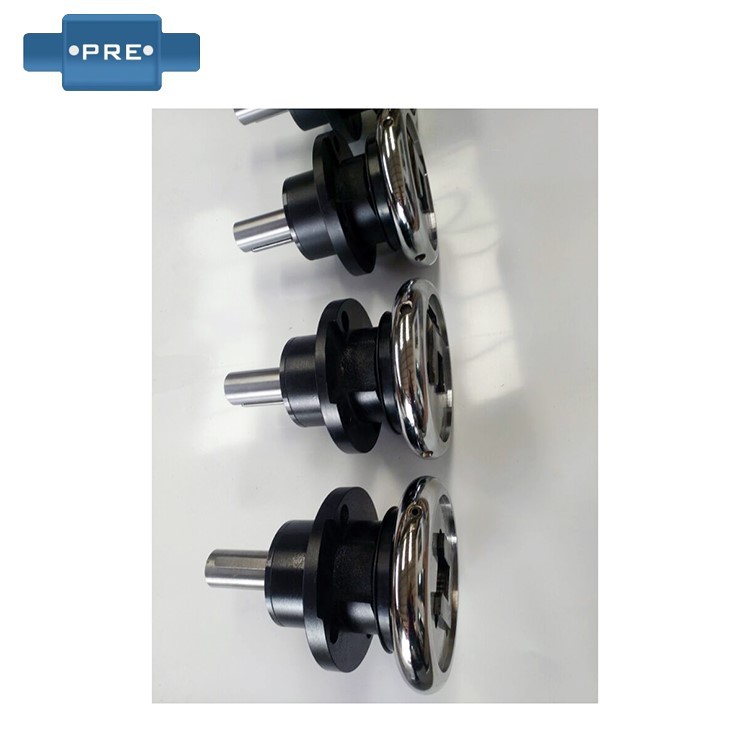

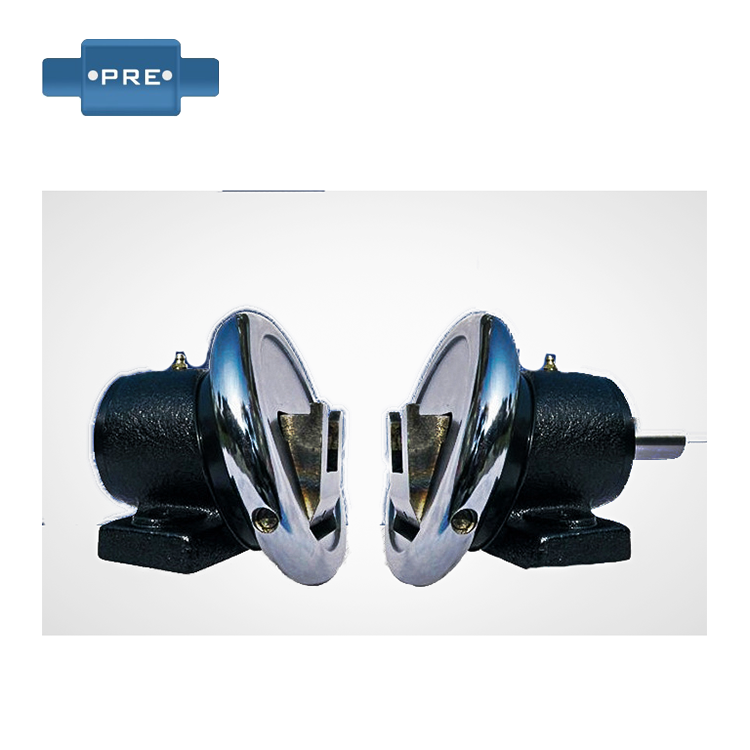

Classification: Safety chucks can be divided into shaft seat type, flange type, or horizontal installation and vertical installation to adapt to different mechanical configurations and operational needs.

Structural characteristics of the safety chuck:
1) The chuck is nickel-plated, and the bayonet parts are hardened, which is strong and durable.
2) Equipped with imported heavy-duty bearings to ensure good performance in heavy-load, high-speed applications.
3) Reasonable tolerance fit of bayonet parts to ensure smooth and continuous torque transmission process.

Advantages of safety chucks:
Stability: The safety chuck holds the web stably and prevents it from slipping, loosening or knotting during retraction.
Adaptive: Safety chucks typically have an adjustable clamping force that can be adjusted according to the type and size of the web to suit different application needs.
Fast response: The safety chuck has the ability to clamp and release quickly, helping to increase productivity and operational flexibility.

How it works:
Safety chucks usually work on a clamp-and-release principle. When the chucks are in working condition, they clamp the coil and apply a certain clamping force to ensure that it is securely fixed. On release, the chuck loosens the clamping force, allowing the web to be placed and removed freely.

When choosing a safety chuck, pay attention to the following two points:
1) In the selection of safety chuck, ensure that the safety chuck model corresponds to the material load-bearing selection, if the safety chuck model is small, the safety chuck will wear out quickly or the equipment will run at high speed and fall off;
2) The safety chuck has a square mouth, a round mouth and a V mouth, and the square mouth, round mouth and V mouth can be used for the shaft head of the inflatable shaft, if the safety chuck mouth is not selected to match the shaft head of the inflatable shaft, then it cannot be installed.

Installation and operation steps:

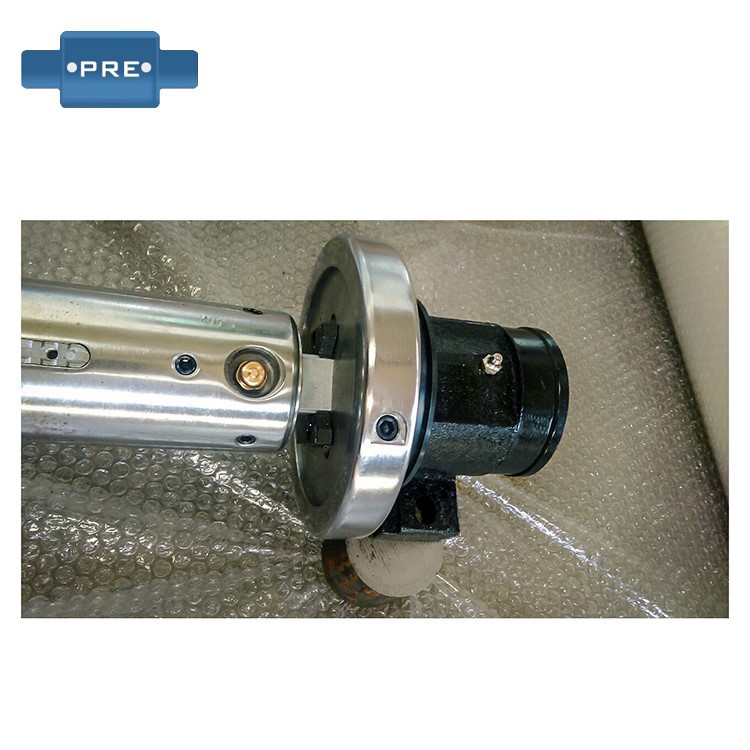

When installing the inflatable shaft safety chuck, the foot base needs to be fixed, and the two ends of the inflatable shaft or square steel are respectively installed into the card slot of the safety chuck. The safety chuck chuck can be manually pushed open, automatically returned to the position when rotating, and the chuck head is driven to rotate by the motor drive, so as to realize the rotation of the coil shaft.

The following points need to be paid attention to when installing:
The product has been manufactured to ensure that the process accuracy is within the allowable range of error, but in the installation, please pay attention to the positioning of the mounting hole, and do implement the calibration of the axis concentricity. The misalignment of the reel should not exceed 0.3 degrees after placement, which helps the shaft end and the safety chuck bayonet to be quickly placed and disengaged, and ensures that the reel and chuck reduce wear and increase the service life. If the error is too large and will cause vibration of the rack and the whole machine, please pay special attention.

Safety chucks are mainly used in rewinding and unwinding equipment, including the following areas:
1) Packaging industry: In the packaging production line of paper, plastic film, metal foil and other coils, the safety chuck can ensure the stability and safety of the coil and prevent abnormal situations in the packaging process
Happen.
2) Printing industry: The safety chuck is used for the positioning and fixing of the paper roll in the printing machine to ensure the accuracy and quality of the printing process.
3) Textile industry: In spinning, weaving or dyeing and finishing equipment, safety chucks grip yarns, fabrics or machine parts to provide a safe and stable working environment.
4) Stretching and Coating Equipment: Safety chucks are applied in stretching and coating equipment to clamp coils and ensure stability and safety during stretching and coating processes.
